    High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock

    Ask Lasest Price
    Brand Name : PAISHUN
    Model Number : 87913
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram
    Supply Ability : 60,000 pcs per month
    Delivery Time : Within 20 to 30 days after we receive advance payment
    • Product Details
    • Company Profile

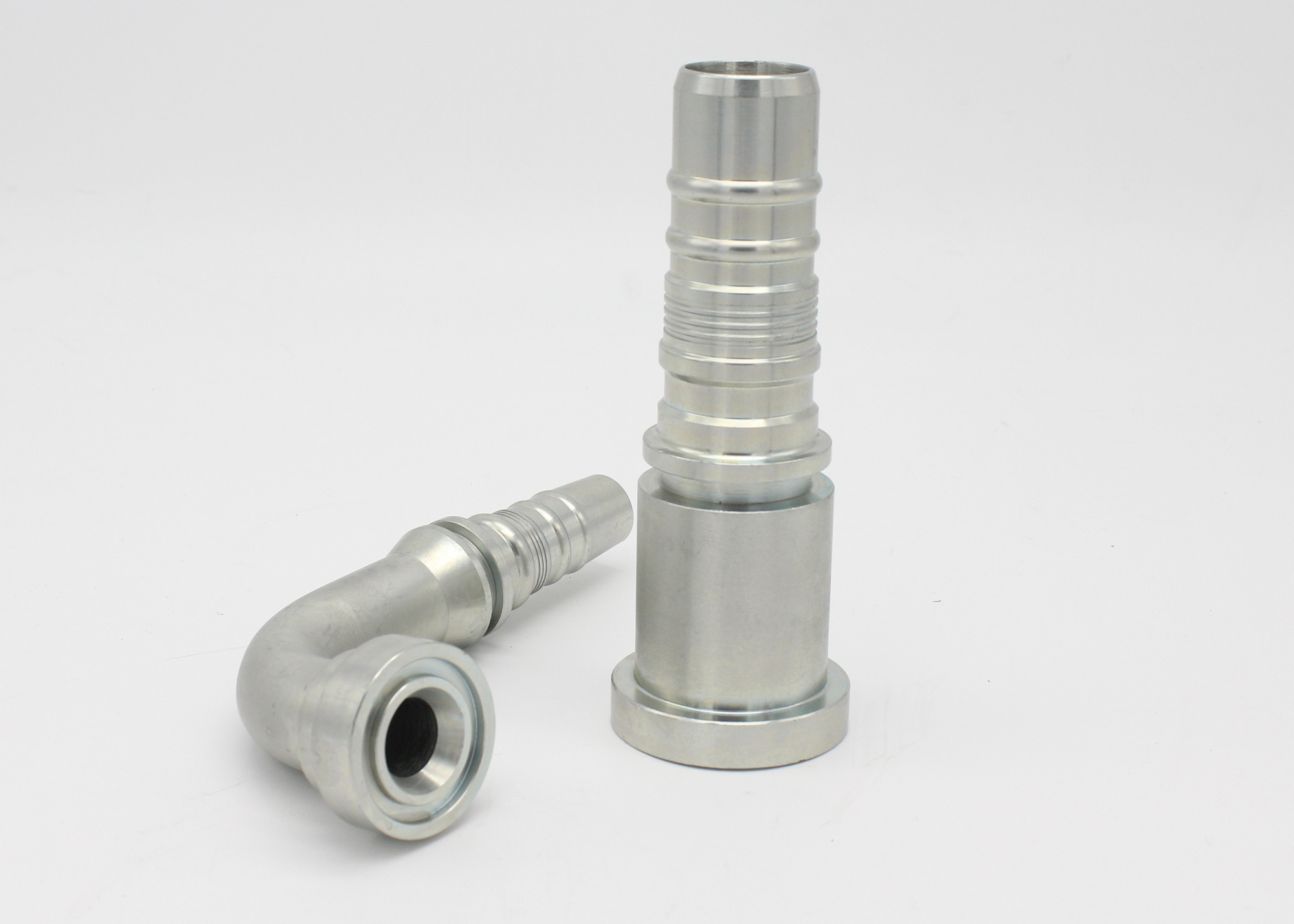

    High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock


    Straight SUPERCAT Flange 9000 PSI , Interlock Hose Fitting , Very high pressure Hose Fitting​


    Descrioption:


    Supercat Flange, 9000 PSI


    Standard: Yonghua

    Technology: Hot forging

    Material: carbon steel 45# or Stainless steel 304/316


    Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
    It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.
    It passes a 96 h salt spray test in accordance with ASTM B 117.


    Packaging: cartons and non-fumigation wooden box.


    Applications:

    Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

    oilfield, mine, building, transportation and other industries.


    Specifications:


    SAE FLANGE 9000 PSI


    87913


    Part No.Thread EHose BoreDimensions
    DNDASHACDL
    87913-12-123/4"201258.541.33214.3
    87913-16-121"20126347.63814.3
    87913-16-161"251664.447.63814.3
    87913-20-161.1/4"25166.8544314.3
    87913-20-201.1/4"322073.8544314.3
    87913-24-201.1/2"322080.663.55114.3
    87913-24-241.1/2"402480.763.55114.3



    It is high pressure hose Flange


    Packageing: Well packed by cartons and free fumigating wooden box.

    Strong Packaging of Hydraulic Hose Fitting from PAISHUN
    All fittings are with PVC plastic caps and plugs to protect against Dust.


    All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.

    In order to guarantee that even in worst sea / maritime weather/transport conditions,

    the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.


    Normal Measure:
    Carton:24cm X 24cm X 16cm
    Wooden box: 110cm X 85cm X 75cm

    Usually 42 cartons can be packed in a wooden box.

    Surely we can be customized the measure according to your request.
