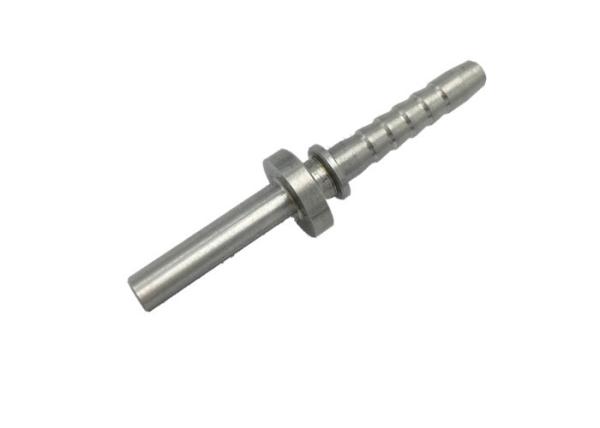

    Metric Standpipe Straight Hydraulic Hose Fitting 3 / 16” to 2” Silver

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : 50011
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram
    Supply Ability : 60,000 pcs per month
    Delivery Time : Within 20 to 30 days after we receive advance payment
    • Product Details
    • Company Profile

    Metric Standpipe Straight Hydraulic Hose Fitting 3 / 16” to 2” Silver


    Metric Standpipe Straight Hydraulic Hose Fitting


    Descrioption:


    Metric Standpipe Straight Hydraulic Hose Fitting DIN 2353


    Applications:

    High pressure fitting is widely used in the hydraulic and fluid conveying system of machinery,

    oilfield, mine, building, transportation and other industries.


    Standard: Yonghua

    Technology: Hot forging

    Material: carbon steel 45# or Stainless steel 304/316


    Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
    It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.
    It passes a 96 h salt spray test in accordance with ASTM B 117.


    Specifications:


    METRIC STANDPIPE STRAIGHT



    Part No.TUBE O.D.Hose BoreDimensionsNOTE
    DNDASHACH
    50091-06-03650326.52242..5L
    50091-06-046604302245.5
    50091-08-058805332450.5
    50091-08-068100635.32452.8
    50091-10-0510805332349.5
    50091-10-0610100635.32351.8
    50091-12-0612100635.32353.8
    50091-12-08121208412359
    50091-15-0615100635.32553.8
    50091-15-08151208412559
    50091-18-08181208412660
    50091-18-1018161056.52664.5
    50091-22-1022161056.52866.5
    50091-22-1222201265.52876
    50091-22-1622251676.72881.5
    50091-28-1628251676.73083.5
    50091-35-203532209336100.5
    50091-08-048604302447.5H
    50091-10-0410604302649.5
    50091-12-0412604302649.5
    50091-12-0512805332652.5
    50091-14-0614100635.32957.8
    50091-14-08141208412963
    50091-16-08161208413064
    50091-16-1016161056.53068.5
    50091-20-1020161056.53674.5
    50091-20-1220201265.53685
    50091-25-1225201265.54089
    50091-25-1625251676.74093.5
    50091-30-1630251676.74093.5
    50091-30-2030322091.544108.5
    50091-38-1638251676.750115.5
    50091-38-2038322091.550114.5

    Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 50092-**-**.

    Packgaing and Shipping:


    Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

    Non-fumigation wooden case: 110cm X 80cm X 75cm

    Usually 42 corragetd cartons are packed in a wooden case.
