    Induction Furnace Carbon Free EPDM Rubber Water Hose With Low Leakage Current

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : ID 1/4" to 1-1/2"
    Certification : ISO 9001-2015
    Price : USD 0.9-5.5 per meter
    Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 100000 meters per month
    Delivery Time : 30 days for FCL
    • Product Details
    • Company Profile

    Induction Furnace Carbon Free EPDM Rubber Water Hose With Low Leakage Current


    Induction Furnace Carbon Free EPDM Rubber Water Hose with low leakage current


    Application: It is used to transport propylene glycol antifreeze, cooling water, air and inertial gas in the induction furnace, medical equipment, data rooms and industrial cooling unit, and is suitable for places requiring insulation. It is also available for places where need bending or friction, and rolling-up of spindle.


    Technical characteristics: Special carbon-free design, high insulation and non-conductive, specific resistance of 2X1013 ohmm, withstand voltage as high as 6000V.

    Induction furnace mainly utilizes the principle of high frequency induction heating, so the furnace circulating cooling water system needs high-insulation and high voltage resistant rubber hose; As common rubber hose cannot meet the insulation requirement, high voltage produced by eddy current effect will bring serious threat to personal safety of operations.


    Structure:

    Inner tube: Black low temperature resistant EPDM synthetic rubber.

    Reinforced layer: High strength synthetic fiber braided layer.

    Protective layer: Red, Blue, or Black anti-aging and wear resistant EPDM synthetic rubber.


    Appearance: Smooth surface, Red, Blue or Black.


    Working pressure: W.P 150~200~300PSI Safety factor: More than 3 times.


    Temperature: -40 to 90℃

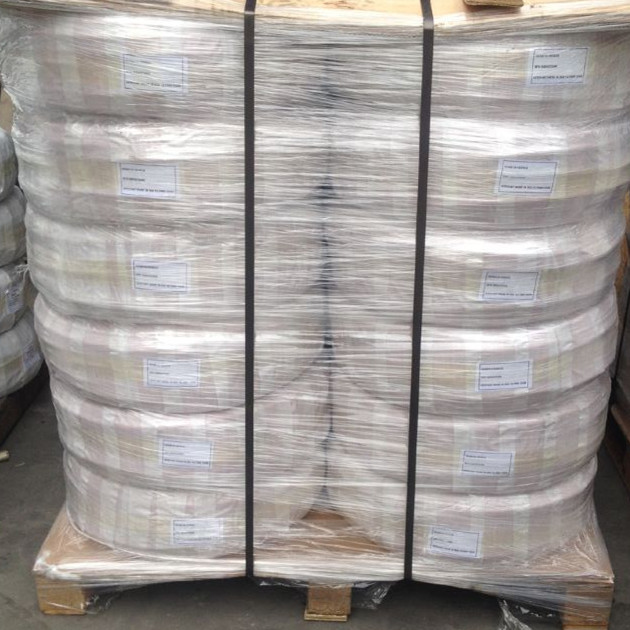

    Packing: Standard export packing with double protection. Available for specific length cutting and pallet package according to customer needs.


    Technical standard: HG/T2184


    Connector: If needed, please provide specific standard parameter or detailed drawing when placing an order; please select correct connectors and installation program.


    Product numberspecificationsI.D (mm)O.D (mm)W.P (PSI)B.P (PSI)Bend Radius (mm)Weight (kg/m)Length (m/pc)
    Cooling hose-103/8"9.516.8200600700.20100
    Cooling hose-1212mm12.019.52006001200.27100
    Cooling hose-131/2"12.720.52006001200.28100
    Cooling hose-1515mm15.023.02006001500.3260
    Cooling hose-165/8"15.924.02006001500.3460
    Cooling hose-193/4"19.027.52006001700.4360
    Cooling hose-227/8"22.232.02006001900.5660
    Cooling hose-251"25.435.62006002000.6860
    Cooling hose-321-1/4"31.843.51504502500.9036
    Cooling hose-381-1/2"38.151.01504503001.2030
    Cooling hose-411-1/2"41.054.01504503201.3020
    Cooling hose-451-3/4"45.058.01504503501.5020
    Cooling hose-502"50.866.01504504002.0020
    Cooling hose-632-1/2"63.580.01506004502.5020
    Cooling hose-763"76.294.01004005003.6040




    Welcome to SEND INQUIRY or CALL Amanda:

    Mob: +86 137 5812 5058
