    5MM Black Color Air Conditioner Refrigeration Charging Hose , Freon Charging Hose

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : ID 5mm
    Certification : ISO 9001-2008, CE
    Price : $0.98USD/m
    Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 400,000 per month
    Delivery Time : 30 days for a 20' FCL after we have received the advanced payment.
    • Product Details
    • Company Profile

    5MM Black Color Air Conditioner Refrigeration Charging Hose , Freon Charging Hose

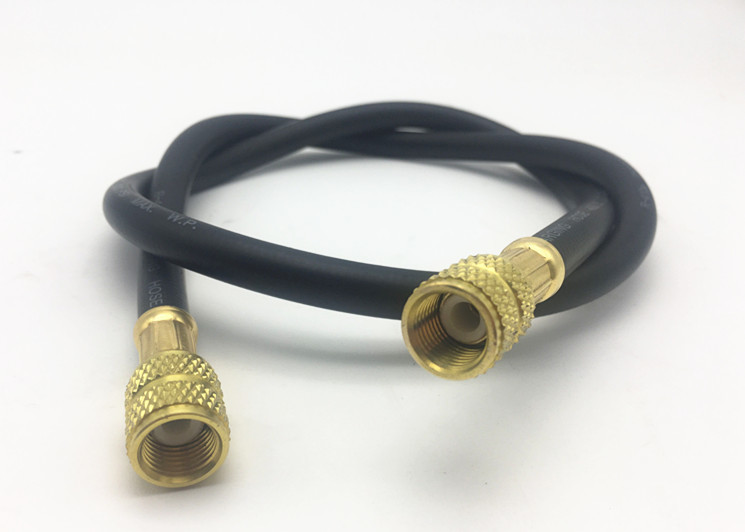

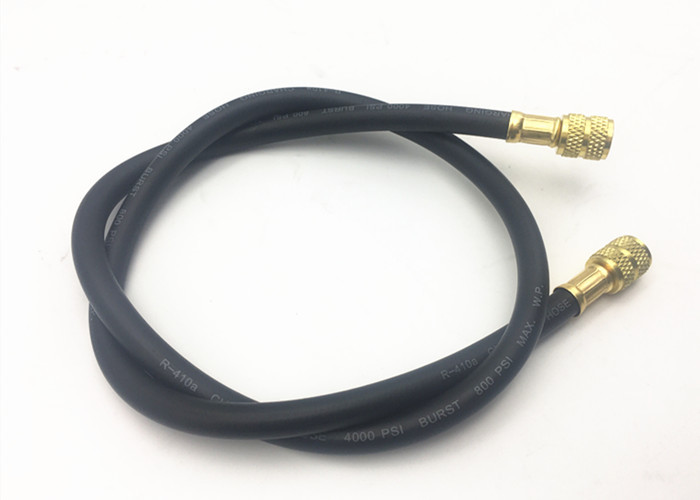

    5MM Black Color Air Conditioner Refrigeration Freon Charging Hose


    Refrigerant Charging Hose (smooth surface)

    Construction: Inner tube: High nitrile-butadience rubber (NBR)

    Reinforcement: Polyester fiber spiral line.

    Cover: NBR&PVC blends.

    Temperature: -30℃ - +100

    Color: Red, Yellow, Blue, Black.

    Application: Mainly used for conveying refrigerant such R12, R22, R502, and R134a; applied widely to auto

    refrigerant, air conditioning, industrial refrigerant etc; both the inner rubber layer and protective layer are of

    high level oil resistance of grade RMA-A and antiseepage.

    Standard length: as customers request.

    Standard: SAE J2196 SAE J2888


    Hose Specification:


    Item Code

    Inner Diameter

    Outer Diameter

    Working Pressure

    Burst Pressure

    Length

    Measurement

    Weight

    mm

    mm

    psi

    psi

    m

    cbm/roll

    kg/m

    Ps01

    5

    11

    500

    2500

    100

    0.02

    0.13

    Ps02

    5

    11

    600

    3000

    100

    0.02

    0.13

    Ps03

    5

    12

    800

    4000

    100

    0.02

    0.16


    5MM Black Color Air Conditioner Refrigeration Charging Hose , Freon Charging Hose5MM Black Color Air Conditioner Refrigeration Charging Hose , Freon Charging Hose5MM Black Color Air Conditioner Refrigeration Charging Hose , Freon Charging Hose


    Refrigerant Charging Hose Fitting For You:



    Connector:1/4SAE, 1/2"ACME, 5/16"SAE
    Refrigerant: R12 R13 R14 R22 R23 R114 R123 R134a R290 R401A R401B R402A R402B R404A R406A R407A R407C R408A R409A R410A R414A R416A R417A R420A R421A R422A R422B R422D R424A R427A R434A R437A R502 R503 R507 R718
    Length: 36", 60", 72",96" or customized
    R12,R22,R502 Refrigerant Standard: Working pressure:500PSI,Burst pressure:2500PSI.
    R134A Refrigerant Standard: Working pressure:600PSI,Burst pressure:3000PSI.
    R410A Refrigerant Standard: Working pressure:800PSI,Burst pressure:4000PSI.

    Features:
    Charging hose are for air conditioner unit charging refrigerant or pressure test.
    One set include 3 pieces of hoses, red,yellow,blue, different of refrigerant need different of PSI hoses.
    The highest working pressure: 4.2 MPa;
    Highest motion differential pressure: 3.5 MPa;
    Suitable temperature of cold media: - 30 ℃ ~ + 70 ℃ ;
    Applicable environmental temperature: - 30 ℃ ~ + 60 ℃ ;
    Applicable environmental relative humidity: 95% RH.


    About Us:


    We Are a Leading Manufacturer Specialized In Designing And Manufacturing Various Kinds Of Rubber Hoses And Hydraulic Hose In China With Experience More Than 10 Years, Manufacturing In Accordance Iso 9001: 2015, Iso / Ts Ce, 29001 And Api q1. We Help Our Clients To Develop Special Qualities And Hydraulic Rubber Hose For Their Needs.
