    Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application

    To visitor: If you are a distributor and Retailer of GASOLINE DISPENSER HOSE or Supplier of spare parts to petroleum companies, you are welcome to contact us for a product selection form and price list.


    We have successfully helped our partners in many countries to develop the market for GASOLINE DISPENSER HOSE, have a wealth of industry experience, and look forward to your enquiry. If you can describe your business ideas through an inquiry, we have more commercial support resources specifically for distributors.


    Flexible Gasoline Pump Hose Fuel Dispensing Hose 5/8" 3/4" and 1" for Service Station Application


    Refer Standard: EN 1360:2005


    Hose Construction -


    Tube: NBR
    Reinforcement: Single High-strength wire braided.
    Cover: NBR / PVC

    Temperature: -40ºC to +70ºC

    Color: Black, Blue, Red and Green etc

    Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.

    Standard length: 20m, 50m (Random Length).


    Specifications:


    Item codeInner DiameterOuter DiameterWorking PressureBurst PressureLengthMeasurementWeight
     inchmmmmbarpsibarpsimcbm/rollkg/m
    HPR-1 5/8’’15.925.4304501201740500.070.57
    HPR-2 3/4’’1928304501201740500.080.65
    HPR-3 1’’2535.5

    30

    4501201740500.1240.82

    One superiority of Paishun's Hose - Hose is very light.


    Hose weight:
    3/4 inch 0.61kg/m.
    1 inch 0.84kg/m.


    Apart from NBR rubber material, there are also other mateiral in hose composition, such as " carbon black, Dioctyl Phthalate and other material ".
    If the NBR material is too low and the other material is too high, the hose will be heavier.

    And too low proportion of NBR material also can cause the hose stiff problem in cold weather.

    The low proportion of NBR rubber material will also leads to hose low aging-resistance problem, the hose will be easy to crack.

    While the NBR proportion of our inner tube covers as high as 42% in hose inner tube and 40% in hose outer tube.
    This NBR proportion is high in fuel dispenser hose industrial.

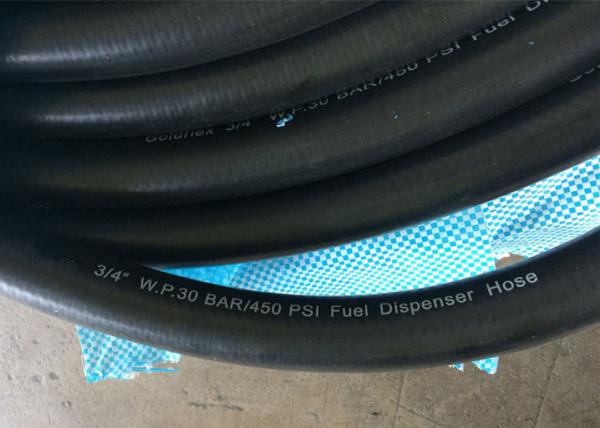

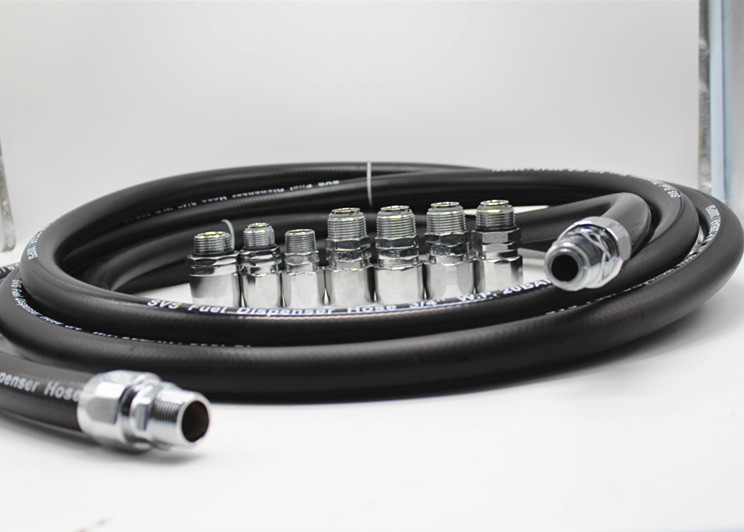

    Hose Pictures:
