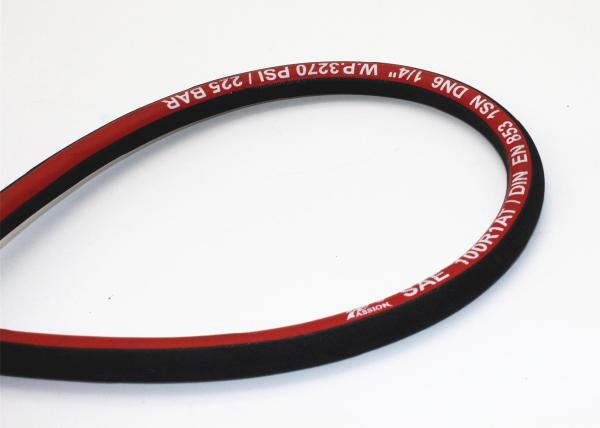

    1/4" Hydraulic Rubber Hose SAE 100R1 One Single High Tensile Steel Wire Braided

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : SAE J517 100 R1 AT
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram
    Supply Ability : 30,000m per month
    Delivery Time : Within 30 days after we receive advance payment for a 20' container
    • Product Details
    • Company Profile

    1/4" Hydraulic Rubber Hose SAE 100R1 One Single High Tensile Steel Wire Braided


    1/4" Hydraulic Hose SAE 100R1 with One Single High-tensile Steel Wire Braided ​


    Description:


    Standard: SAE J517 100R1 AT


    Construction

    Tube: NBR synthetic rubber.
    Reinforcement: A single high-tensile steel wire braided.
    Cover: NBR oil and weather resistant synthetic rubber.


    Temperature: -40℃ - +100℃


    Color: Black, Grey, Blue, etc.


    Standard length: 100m/roll


    Crimped Fitting: 00110 ferrule and 1 serious crimping fitting.


    specification of R1.pdf


    Specifications:


    One Wire Braided Reinforced Hydraulic Rubber Hose


    Item CodeInner DiameterOuter DiameterWorking PressureBurst PressureLengthMeasurementWeight
    inchmmmmbarpsibarpsimcbm/rollkg/m
    R1-053/165.012.025036301001145201000.04250.20
    R1-061/46.413.52253270900130801000.04540.24
    R1-085/168.015.12153120860124801000.04870.28
    R1-103/810.017.51802615721104601000.07350.36
    R1-131/212.520.0160232064092801000.04870.45
    R1-165/816.024.013018905217560500.07840.51
    R1-193/419.028.010515304226120500.06860.65
    R1-25125.036.08812803535120500.09490.96
    R1-321 1/432.043.5639202543680200.1211.25
    R1-381 1/238.050.1507302012920200.14521.60
    R1-51251.063.6405801602320200.2197

    2.20



    Details:



    Packed




    Competitive Advantage:

    It is made according to SAE J517 / DIN EN 853 standard.


    We have several ways of hydraulic hose packaging for our customers:

    1. Colorful poly stripes (normal packing)
    2. reel
    3. customized carton hose assembly
    4. customized PE bag for hose assembly
    5. packed with pallets

    We supply OEM, ODM according to customer’s requirement.


    The hydraulic hoses and fittings can be assembled in our factory.


    The hydraulic hoses R1 and R2 can be made in the smooth surface.


    We also supply hose protector for our customers.
