1/4" X 6ft 304 SS Wire Braided PTFE Hose With Female JIC Swivel
Fittings
Key properties
Excellent chemical resistance
Working temperature from -180°C to +260°C
FDA approved
Flame resistant - UL94V0
No stick
Low friction
Very good dielectric insulation properties
Construction: Tube: Domestic PTFE / The imported F-205 of Japan Daikin
Cover: SS304 / SS316 Braided
Temperature: -50℃ to +200℃ (Domestic Material)
-50℃ to +260℃ (Imported Material)
Application: Mainly used for conveying various chemicals, ships, automobiles,
Marine industry machinery hydraulic system etc
Coil length: 6ft / unit
Standard: SAE100 R14
Connector: Customize as per request
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bending Radius | Thickness | Approx. Weight |
| inch | mm | mm | bar | Bar | mm | mm | Kg/m |
| 1/8" | 3.2 | 6.6 | 320 | 988 | 51 | 1 | 0.07 |
| 3/16" | 4.8 | 7.7 | 242 | 726 | 75 | 0.85 | 0.09 |
| 1/4" | 6.4 | 9.3 | 210 | 653 | 81 | 0.85 | 0.11 |
| 5/16" | 7.9 | 10.8 | 188 | 587 | 92 | 0.85 | 0.15 |
| 3/8" | 9.5 | 12.7 | 185 | 556 | 131 | 0.85 | 0.17 |
| 1/2" | 12.7 | 16.3 | 106 | 461 | 182 | 1 | 0.31 |
| 5/8" | 15.9 | 19.3 | 127 | 382 | 211 | 1 | 0.47 |
| 3/4" | 19 | 22.3 | 78 | 269 | 338 | 1.2 | 0.57 |
| 7/8" | 22.2 | 26.2 | 60 | 195 | 421 | 1.2 | 0.7 |
| 1" | 25.4 | 29.8 | 40 | 153 | 539 | 1.5 | 0.8 |
| 2’’ | 50 | 55.6 | 30 | 120 | 1015 | 2 | 1.5 |

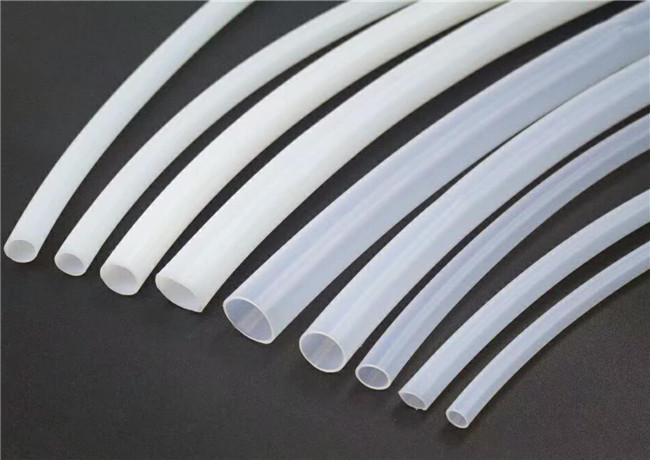

smooth PTFE (virginal)
304 Stainless Steel Fittings
Excellent high temperature & corrosion resistance
Packing & Shipment
Normal Packing: opp film and woven strips wrapped
Customized Packing can be offered
Shipment: Non-fumigation pallrt or Wooden reels
Competitive Advantage
1, 15 years manufacturing experience
2, Hot sale in America, Canada, Germany, Mexico. Bulk hose
3, Free Sample is available / Hose assembly is available
4, Convoluted PTFE Hose is available
Hangzhou Paishun Rubber and Plastic Co., Ltd established in 2007, is a rapid growing enterprise who integrate the production and
marketing of rubber industrial hoses, rubber hydraulic hoses, and
hydraulic hose fittings.
After 8 years effort and development, now we have become one of the
leading rubber hose manufacturers and suppliers in China. We have
been enjoying high reputation in rubber industrial hose and
hydraulic hose market domestically and internationally.
Hangzhou Paishun Products Range:
Our factory focus on manufacturing Rubber industrial hoses, which include Rubber air hose , Rubber
water hose , LPG gas hose , twin welding hose , rubber fuel hose.
Our stock-shared factory focus on manufacturing Rubber hydraulic
hose , which includes SAE 100R1 , SAE 100R2 , SAE 100R7/ R8 , EN856 4SH , 4SP , SAE 100
R9 , R10 , R12 , SAE 100R14 Braided PTFE hose , Hydraulic hose
fitting and ferrule ; Air conditioning hose ; Refrigerant charging
hose .
We are very professional and have full experience in crimping
fittings and quick release couplings on hoses. Such as rubber air
hose assembly, contractor garden hose assembly, washing machine
hose assembly, LPG hose assembly, hydraulic hose assembly, high
pressure washer hose assembly, paint spray hose assembly, etc.
We are capable of supplying our products in various kinds of
packaging according to customers' specific requirements.
Now our rubber hoses and hose assemblies are exported to USA,
Canada, Italy, UK, Norway, Russia, Spain, Portugal, Denmark,
Australia, Japan, Thailand, Sri Lanka, Peru, Brazil, Venezuela,
South Africa etc, about 50 countries all over the world.
PASSION® Rubber hoses are approved by CE, SGS, TUV.
But Hangzhou Paishun have never stop going forward, in order to
supply more rubber hoses to our customersand enlarge the production
range, in 2012, together with our partner, we build another
factory, which produce silicone auto rubber hoses in Jiangsu China.
FAQ
1. Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province,
China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit
us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION people always attach great
importance to quality controlling from the very beginning to the
very end. Our factory has gained CE, ISO, SGS, TUV etc.
Authentication.
