Stainless Steel Hydraulic Fitting 22611 with Female BSP Thread
We are specialized in hydraulic hose fittings, ferrules, adaptors,
couplings, stainless steel fittings & brass fittings
1. Hydraulic Hose Fittings:
1). BSP, JIC, NPT, ORFS, SAE male, female fitting, straight &
elbow, nuts, ferrules
2). Metric male, female fitting, straight & elbow, nuts, ferrules
3). Reusable fittings
4). One-piece fittings
2. Hydraulic Adaptors:
1). BSP, JIC, NPT male, female adaptor, 3 ways tee 4 ways tee
2). ORFS, SAE, Metric male, female fitting, straight & elbow, nuts,
ferrules
3.Stainless Steel (316SS / 304SS) & Brass & aluminum fittings:
NPT,JIC,BSP etc threaded male and female fittings & adaptors for
low & high pressure
The SAE J516 standard for hydraulic fittings specifies that
fittings shall be plated with a material that passes a 72-hour salt
spray test in accordance with ASTM B117.
Our fitting can stand for at least 96 hours.
Catalogue
of Hydraulic Fitting BSP Female 2611.pdf...
Specification
| Description | Part No. | Thread E | Hose Bore | Dimensions |
| DN | DASH | A | C | S2 |
| BSP FEMALE 60 DEGREE CONE | 22611-02-03 | G1/8"X28 | 5 | 03 | 15 | 5.5 | 14 |
| 22611-02-04 | G1/8"X28 | 6 | 04 | 15 | 5.5 | 14 |
| 22611-04-03 | G1/4"x19 | 5 | 03 | 17 | 5.5 | 19 |
| 22611-04-04 | G1/4"x19 | 6 | 04 | 18 | 5.5 | 19 |
| 22611-04-05 | G1/4"x19 | 8 | 05 | 18 | 5.5 | 19 |
| 22611-04-06 | G1/4"x19 | 10 | 06 | 18 | 5.5 | 19 |
| 22611-06-04 | G3/8"x19 | 6 | 04 | 19 | 6.3 | 22 |
| 22611-06-05 | G3/8"x19 | 8 | 05 | 19 | 6.3 | 22 |
| 22611-06-06 | G3/8"x19 | 10 | 06 | 19.5 | 6.3 | 22 |
| 22611-06-08 | G3/8"x19 | 12 | 08 | 19.5 | 6.3 | 22 |
| 22611-08-06T | G1/2"x14 | 10 | 06 | 21 | 7.5 | 27 |
| 22611-08-08 | G1/2"x14 | 12 | 08 | 21.5 | 7.5 | 27 |
| 22611-10-08 | G5/8"x14 | 12 | 08 | 22 | 9.5 | 30 |
| 22611-10-10 | G5/8"x14 | 16 | 10 | 23.5 | 9.5 | 30 |
| 22611-12-08T | G3/4"x14 | 12 | 08 | 22 | 10.9 | 32 |
| 22611-12-10 | G3/4"x14 | 16 | 10 | 24 | 10.9 | 32 |
| 22611-12-12 | G3/4"x14 | 20 | 12 | 24 | 10.9 | 32 |
| 22611-16-12T | G1"x11 | 20 | 12 | 24 | 11.7 | 41 |
| 22611-16-14 | G1"x11 | 22 | 14 | 26 | 11.7 | 41 |
| 22611-16-16 | G1"x11 | 25 | 16 | 27 | 11.7 | 41 |
| 22611-20-16T | G1.1/4"x11 | 25 | 16 | 27.5 | 11 | 50 |
| 22611-20-20W | G1.1/4"x11 | 32 | 20 | 30.5 | 11 | 50 |
| 22611-24-20T | G1.1/2"x11 | 32 | 20 | 32 | 13 | 55 |
| 22611-24-24W | G1.1/2"x11 | 40 | 24 | 32 | 13 | 55 |
| 22611-32-24T | G2"x11 | 40 | 24 | 30 | 16 | 70 |
| 22611-32-32W | G2"x11 | 50 | 32 | 31.9 | 16 | 70 |
Note: 1 for use with braided hoses, if use with spiral hoses, hose
fitting series number is 26712-**-**.
BSP
Hydraulic Hose Fitting 22611
Picture of Product
Production Flow
The material of ferrule: Stainless Steel 304, 316
All of our machines are CNC machines, sizes are more stable and
accurate than instrumentation machine.

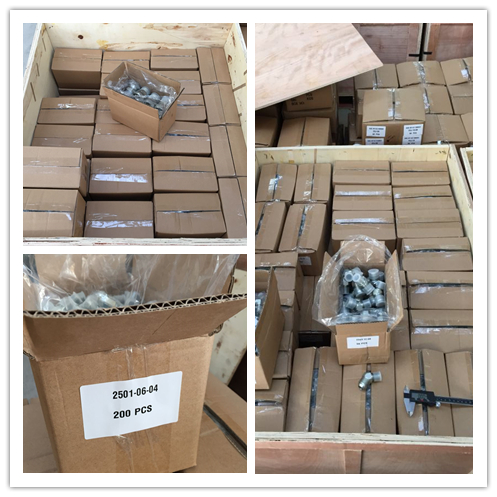

Packing of Fittings and Ferrules
Carton: 5 layers corrugated carton 24cm X 24cm X 16cm
Wooden Case: 110cm X 80cm X 75cm
Usually 42 corragetd cartons are packed in a wooden case.
FAQ
Q: Is it stainless steel fitting?
A: Yes, if you need carbon steel one, we also can produce it for
you.
Q: Is it standard hydraulic fitting?
A: Yes, all of our hydraulic fittings are standard parts.Each of
hydraulic hose can find our hydraulic fittings to fit for.
Q: Can you print model and our brand on the ferrule and fitting?
A: We can print model and your brand on the ferrule, but there is
no enough space to print them on the fitting, just logo is ok.
Q: Can you produce fitting according to sample or drawings?
A: Yes, we can produce fitting according to your samples or
drawings.
Q: Can you galvanize zinc in golden color for carbon steel fitting?
A: Yes, it can be made in golden color, anyway, we suggest to use
siliver zinc plated fitting because it is ROHS compliant.
