    ISO 7241-B Hydraulic Quick Coupler With Compatibllity Parker 60 Series

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : ISO7241-B
    Certification : CE, ISO 9001:2008
    Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 15,000 pcs per week
    Delivery Time : 28 days after payment
    • Product Details
    • Company Profile

    ISO 7241-B Hydraulic Quick Coupler With Compatibllity Parker 60 Series


    Hydraulic Quick Coupling ISO 7241-B

    Features

    1. Valve plug can automatically close to prevent leakage when couplings are disconnected.

    2. Valve plug can automatically open to let fluid get through when couplings are connected.

    3. Key parts are induction hardened for a better durability.

    4. Function reliable ball-lock system combines 2 marched half parts together.

    5. Male and female couplings are machined from solid steel bar stock.

    6. These couplings reach the ISO7241-B standard.

    7. The same function and can interchange the following products:
    Parker 60 series, Faster HNV series, Aeroquip FD45 series, and Hansen HA series.


    Specification of Product

    SPECIFICATIONS
    Body Size (in)1/4"3/8"1/2"3/4"1"1-1/4"1-1/2"2"
    Rated Pressure(PSI)10001000100010001000800800800
    Rated Flow(GPM)3612285075100150
    Temperature Range(STD Seals)-20°C ~ +80°C
    Standard Seal MaterialsFlourocarbon


    Hydraulic Quick Coupler ISO 7241B Series - Owen Ha...

    Pressure Drop-in PSID






    Part No.LSφDHSAT
    H102-01SF48242*1410ZG1/8
    H102-02SF58282*1912.5ZG1/4
    H102-03SF65352*2113ZG3/8
    H102-04SF72452*2914ZG1/2
    H102-06SF88552*3517ZG3/4
    H102-08SF102652*4123ZG1
    H102-10SF115792*5427ZG1-1/4
    H102-12SF124792*6327ZG1-1/2
    H102-16SF1321092*7730ZG2

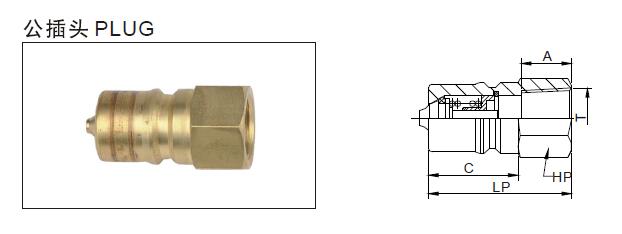

    Part No.LPCHPAT
    H102-01PF29196*1410ZG1/8
    H102-02PF3622.56*1912.5ZG1/4
    H102-03PF40256*2113ZG3/8
    H102-04PF44286*2914ZG1/2
    H102-06PF52366*3517ZG3/4
    H102-08PF62406*4123ZG1
    H102-10PF70456*5427ZG1-1/4
    H102-12PF75496*6327ZG1-1/2
    H102-16PF80526*7730ZG2


    Picture of Product


    Packing and Shipping
    We ship the goods by express, by air, by sea or according to your requirement.
