    WP 105BAR ID 3/4" R1/1SN High Pressure Hydraulic Hose For Construction

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : SAE 100R1 / EN853 1SN
    Certification : ISO 9001:2015, CE, Rohs, MSHA
    Price : Negotiable
    Payment Terms : T/T, L/C, Money Gram, PayPal, Western Union, MoneyGram, etc.
    Supply Ability : 500,000 meters per month
    Delivery Time : 26 working days
    • Product Details
    • Company Profile

    WP 105BAR ID 3/4" R1/1SN High Pressure Hydraulic Hose For Construction


    WP 105BAR ID 3/4" R1/1SN High-Pressure Hydraulic Hose for Construction


    Paishun Advantage

    * Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
    * Free hose sample.
    * We can print words and your logo on
    the hose as your request.
    * We test the products before shipping out. We have a complete line of test machines.
    * We can also get you fittings or assembly.
    * We ship the goods by express, by air, by sea or according to your requirement.


    SAE 100R1 / EN853 1SN Hydraulic Hose

    NameSAE 100R1AT
    MaterialNBR
    CertificationCE approved.
    Size3/16"~2"
    ColorBlack
    Temperature range-40ºC~+100ºC
    ReinforcementOne braid of high-tensile steel wire.
    Capability/FeatureOil resistant, abrasion resistant, anti-aging.
    Length100m or 50m per roll.
    Tolerance0.05mm
    ApplicationMedium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.
    PackageWell packed by poly stripes or as your requirement.
    DeliveryAccording to your quantity, generally speaking, 35 days for a 20' container.



    Specification


    PartInHose Size ID DIN Dash SizeHose ODMax. Working PressureMin. Burst Pressure
    inmmmpampa
    GR1SN-033/164.8 Din Dash size0.4711.925100.1
    GR1SN-041/46.4 Din Dash size0.53413.622.590.2
    GR1SN-055/167.9 Din Dash size0.59515.121.586
    GR1SN-063/89.5 Din Dash size0.68917.51872.1
    GR1SN-081/212.7 Din Dash size0.81320.71664
    GR1SN-105/815.9 Din Dash size0.93823.81352.1
    GR1SN-123/419 Din Dash size1.09627.810.542.2
    GR1SN-16125.4 Din Dash size1.40835.88.835.3
    GR1SN-2011/431.8 Din Dash size1.69643.16.325.4
    GR1SN-2411/238.1 Din Dash size1.97150.1520.1
    GR1SN-32250.8 Din Dash size2.50363.6416

    Specification of Hydraulic Hose SAE 100R1 EN853 1SN.pdf

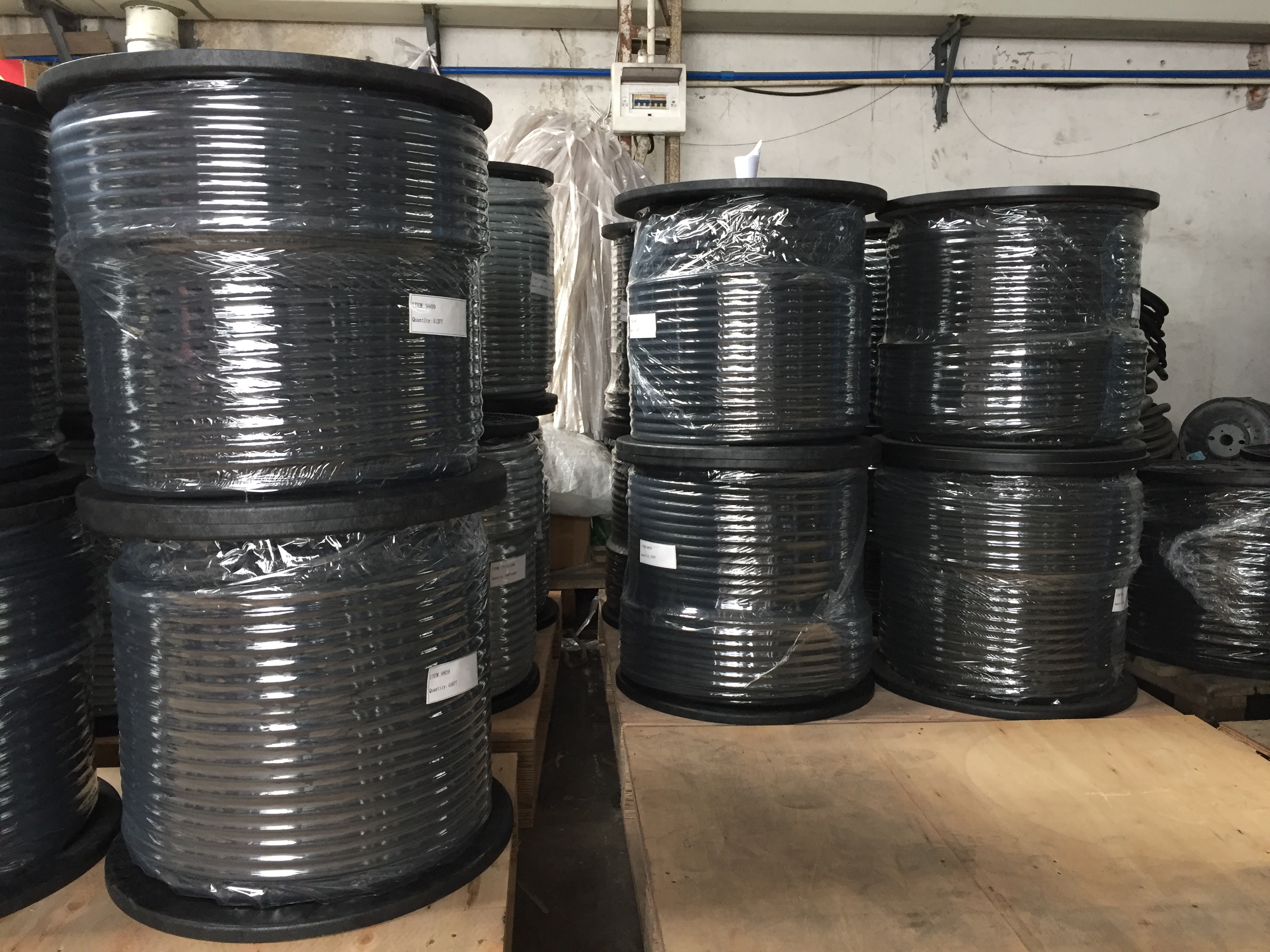

    Photo of SAE R1/1SN Hose


    Packing and Shipping
    Goods are well packed by colorful poly stripes or transparent OPP films.

    Carton boxes, reels, and pallets are also available.
    Can be shipped by air, by sea, by truck and by train.




    Application

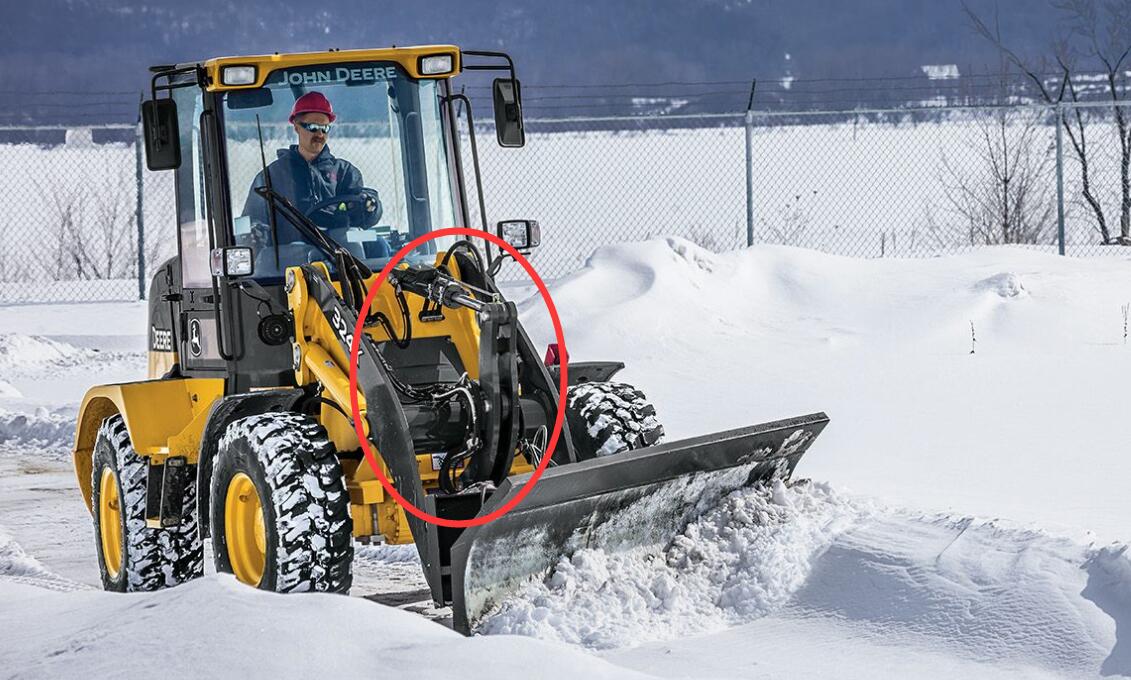

    For construction heavy machinery equipment such as excavator, roller, forklift, etc.



    Impulse Testing Machine


    1 wire and 2 wire braided hoses pass the impulse testing of 200,000 times; 4 wire spiral hoses pass the impulse testing of 400,000 times.

    If you’ll need. We can supply the testing report for you.







    Please feel free to contact us for any question or request!


    PASSION FOR HOSE, PASSION FOR YOU!!!
