    345 Bar High Pressure Hydraulic Hose SAE 100 R13 With Four Tensile Wire

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : SAE 100 R13
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Money Gram, PayPal, lWestern Union
    Supply Ability : 300,000 meters per month
    Delivery Time : In 30 days after received your payment
    • Product Details
    • Company Profile

    345 Bar High Pressure Hydraulic Hose SAE 100 R13 With Four Tensile Wire

    345 bar High Pressure Four Tensile Wire Spiral Reinforced Hydraulic Rubber Hose SAE 100 R13


    * Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
    * Free hose sample.
    * We can print words and your logo on the hose as your request.
    * We test the products before shipped out. We have complete line of test machines.
    * We can also get you fittings or assembly.

    * We ship the goods by express, by air, by sea or according to your requirement.


    Detail Information of Product


    NameSAE 100R13
    MaterialSeamless oil resistant synthetic rubber
    CertificationCE and ISO approved.
    Size3/4"~2"
    ColorBlack or as your request
    Temperature Range-40ºC~+120ºC
    Working Pressure345bar
    Burst Pressure1380bar
    Reinforcement4 or 6 spirals of high-tensile steel wire.
    Surfacecloth wrapped or smooth surface
    Capability/FeatureOil resistant, abrasion resistant, anti-aging.
    Length100m or 50m per roll.
    Telerance0.05mm
    ApplicationFor delivery of petroleum basehydraulic fluids or water base liquids.
    PackageWell packed by poly stripes or as your requirement.
    DeliveryAccording to your quantity, about 30 days for a 20' container.

    Specification of Product


    Part NumberSIZEI.DW.DO.DW.PB.PMin Bend RadiusWeight
    inchmmmmmmbarpsibarpsimmg/m
    P12-R133/4″1929.13234550001380200002401625
    P16-R131″25.435.238.734550001380200003002065
    P20-R131 1/4″31.846.349.534550001380200004203865
    P24-R131 1/2″38.154.357.334550001380200005004845
    P32-R132″50.868.17234550001380200006306420

    Picture of Products

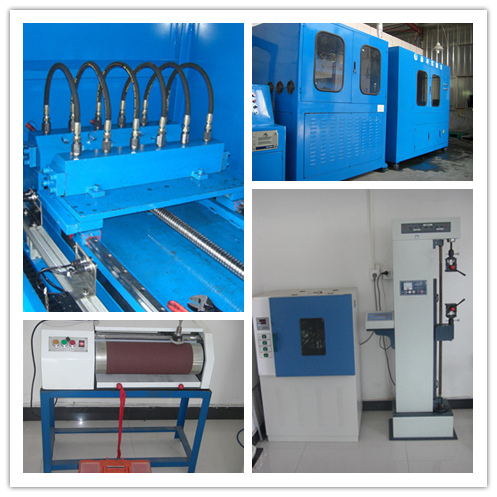

    Paishun Test Machines


    In order to ensure the quality of our hydraulic hoses are good and stable. We test every batch of goods before sent out. Below are some common tests.

    1 Working pressure test

    All the hoses need to do this test before shipment.

    2 Burst pressure test

    3 Impulse test

    1 wire and 2 wire braided hoses pass the impulse testing of 200,000 times; 4 wire spiral hoses pass the impulse testing of 400,000 times.

    If you’ll need. We can supply testing report for you.


    FAQ

    ♦ What is your terms of payment?
    • T/T, L/C, Western Union, Paypal, MoneyGram are all good.

    ♦ How about your delivery time?
    • Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    ♦ Can you produce according to the samples?
    • Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    ♦ What is your sample policy?
    • We can supply the sample for free, but the courier cost for you to pay.

    ♦ Do you test all your goods before delivery?
    • Yes, we have 100% test before delivery.

    ♦ How do you make our business long-term and a good relationship?
    • We keep good quality and competitive price to ensure our customers' benefit.
    • We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

    Our Services

    1.We can provide matching hose connection.
    2.We can provide free hose sample.
    3.Other kinds of rubber hoses are also served.
    4.Other sizes can be customized.
    5.We can print words on the hose according to your requirement.
    6.We can package the goods according to your requirement.


    PASSION FOR HOSE, PASSION FOR YOU!!
