1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System

Hangzhou Paishun Rubber & Plastic Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System from wholesalers

    Buy cheap 1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System from wholesalers
    • Buy cheap 1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System from wholesalers
    • Buy cheap 1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System from wholesalers
    • Buy cheap 1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System from wholesalers
    • Buy cheap 1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System from wholesalers

    1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : SAE J1401
    Certification : CE, ISO 9001:2008
    Price : 0.79 SD per meter
    Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 50,000 meters per week
    Delivery Time : 30 days after your payment
    • Product Details
    • Company Profile

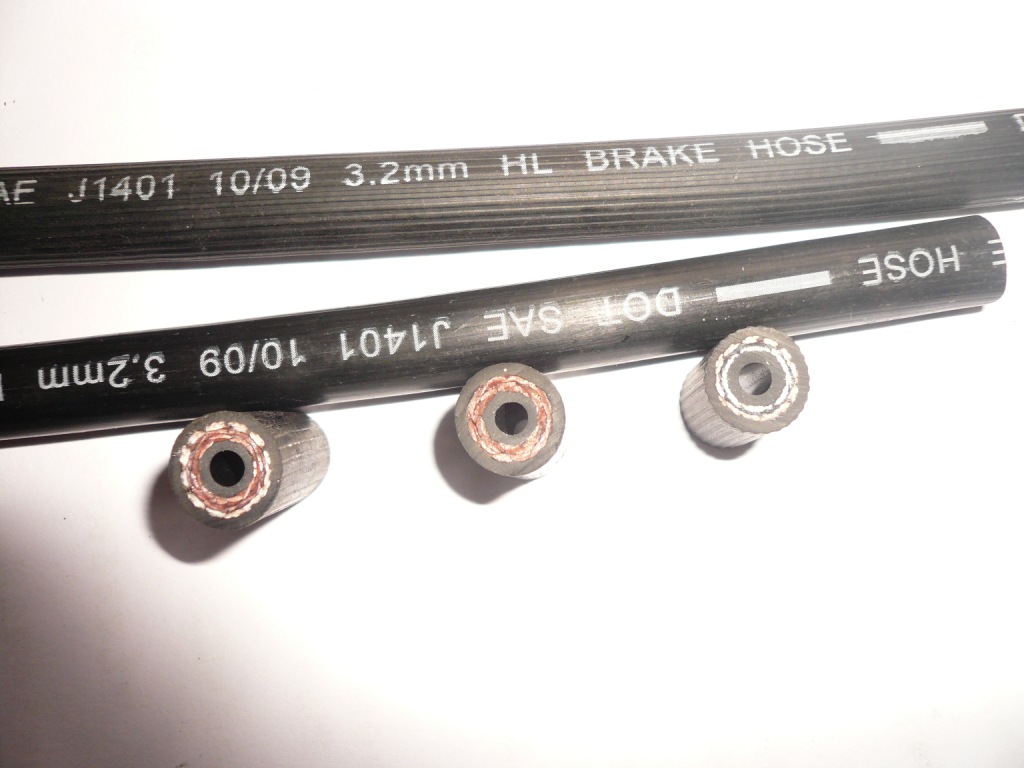

    1/8" 3.2mm x 10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System

    1/8" 3.2mmx10.5mm SAE J1401 Hydraulic Brake Hose for Automotive Brake System


    * Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
    * Free sample for you.
    * OEM accepted. We can print words and your logo on the hose as your request.
    * Packed by poly stripes or as your request.
    * Test the products before shipped out. We have complete line of test machines.
    * We can also get you hose assembly.


    StandardSAE J1401 GB16897-1997 MS263-49
    Inner TubeNBR/EPDM
    Outer TubePET and PVA
    Temperature Range-40ºC~+100ºC
    ApplicationAct as pressure transmission for auto hydraulic pressure brake system.

    Features: The hoses are braided with high strength, manifold, polyester yards and have very good performances as the followings: good flexibility bursting resistance, high tensile strength, low swell increment of the internal volume, ozone resistance, low-temperature, bending resistance and good compatibility with stable, safe and reliable braking effects.


    Specification

    Item CodeInner DiameterOuter DiameterWallDiff max.Expansion ml/m maxBurst Press Min.
    inchmmmmmmmm6.9mpa10.3mpampa
    J1401-11/83.2±0.210.5±0.33.65≤0.25<1.08<1.38>49.03
    J1401-23/164.8±0.213±0.34.35≤0.30<1.81<2.36>34.5
    J1401-31/46.3±0.215±0.33.75≤0.30<2.69<3.84>34.5


    Packaging
    Well packed by transparent OPP film or as your requirement.


    Shipping
    We ship the goods by express, by air, by sea or according to your requirement.


    CE and ISO Certification


    Our Services

    1.We can provide matching hose connection.
    2.We can provide free hose sample.
    3.Other kinds of rubber hoses are also served.
    4.Other sizes can be customized.
    5.We can print words on the hose according to your requirement.
    6.We can package the goods according to your requirement.
