En 856 4sh 4sp Four Layers Wire Spiral Reinforced Very High
Pressure Hydraulic Rubber Hose for Industrial Machines
Specification
| Part | In | Hose Size ID DIN Dash Size | Hose OD | Max.Working Pressure | Min.Burst Pressure |
| in | mm | mpa | mpa |
| G4SH-12 | 3/4 | 19 Din Dash Size | 1.268 | 32.2 | 41.4 | 165.5 |
| G4SH-16 | 1 | 25.4 Din Dash Size | 1.524 | 38.7 | 37.9 | 151.7 |
| G4SH-20 | 11/4 | 31.8 Din Dash Size | 1.791 | 45.5 | 32.4 | 129.6 |
| G4SH-24 | 11/2 | 38.1 Din Dash Size | 2.106 | 53.5 | 29 | 115.8 |
| G4SH-32 | 2 | 50.8 Din Dash Size | 2.681 | 68.1 | 25.2 | 100.7 |
| G4SP-04 | 1/4 | 6.4 Din Dash Size | 0.705 | 17.9 | 45.2 | 180.6 |
| G4SP-06 | 3/8 | 9.5 Din Dash Size | 0.843 | 21.4 | 44.5 | 177.9 |
| G4SP-08 | 1/2 | 12.7 Din Dash Size | 0.969 | 24.6 | 41.4 | 165.5 |
| G4SP-10 | 5/8 | 15.9 Din Dash Size | 1.11 | 28.2 | 34.5 | 137.9 |
| G4SP-12 | 3/4 | 19 Din Dash Size | 1.268 | 32.2 | 34.5 | 137.9 |
| G4SP-16 | 1 | 25.4 Din Dash Size | 1.563 | 39.7 | 27.6 | 110.3 |
Detail Information
| Material | NBR |
| Size | From 1/4 inch to 2 inch |
| Color | Black |
| Reinforcement | Four layers of spiraled high-tensile steel wire. |
| Temperature Range | -40ºC ~ +100ºC |
| Application | Very high pressure, pulsating applications used for petroleum based
hydraulic fluids.
Can be used on CAT KOMATSU Excavator. |
| Certification | CE approved |
| Capability | Oil resistant, wear resistant, anti-aging. |
| OEM accepted | Yes |
| Fitting | We can provide as your requirement. |
| Packaging Detail | We pack the goods with poly stripes or as your request. |
| Delivery | According to your quantity, about 30 days for a 20' container. |

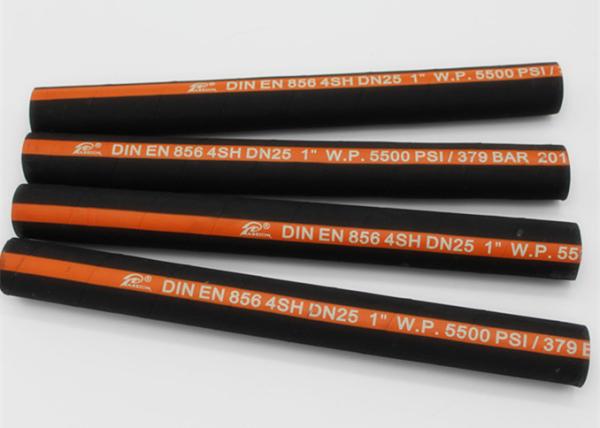

Hose Picture
Paishun Tips: How to choose rubber hose.
Principle of Selection
The following factors shall be taken into consideration of the
selection of rubber hose or hose assembly.
Working Environment
1) Ambient temperature: the high ambient temperature will quicken
the aging of rubber hose, while the extreme low temperature may
reduce the elasticity of hose and make it hard.
2) Atmospheric conditions: either indoor or outdoor, the
high-concentration ozone on the outdoor environment and ultraviolet
radiation in the sunlight will accelerate the aging of hose.
3) The contact with attacking media, including oil, benzene, strong
acid and alkaline or other corrosive chemicals.
Conveyance Medium
1) Category of hose conveyance medium (gas, liquid, solid or
mixture of them), solid media are more apt to wear hose than gas
and liquid.
2) Name of conveyance fluid: the fluid of different property will
be conveyed by the hose if different material, different color of
hose and safe pressure coefficient, there are many types of gases,
e.g. Air, oxygen, carton dioxide combustible gases, e.g. Acetylene
gas, LPG, and methane gas etc. , and liquids: water, acid-base,
oil, refrigeration agent and special chemicals, some of theme can
be used together, but others should be distinguished while using.
3) Means of fluid conveyance, parameters of pressure (withstanding
positive pressure) and flow rate, and cohesion (withstanding
negative pressure) and flow rate.
4) Working temperature and pressure parameters of conveyance fluid.
5) Fluid conveyance frequency.
FAQ
♦ What is your terms of payment?
• T/T, L/C, Western Union, Paypal, MoneyGram are all good.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can
build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you
to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery.
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our
customers benefit.
• We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
Advantages
* Professional manufacturer for over 10 years in East China, near
Shanghai and Ningbo port.
* Free hose sample.
* We can print words and your logo on the hose as your request.
* We test the products before shipped out. We have complete line of
test machines.
* We can also get you fittings or assembly.
* We ship the goods by express, by air, by sea or according to your
requirement.

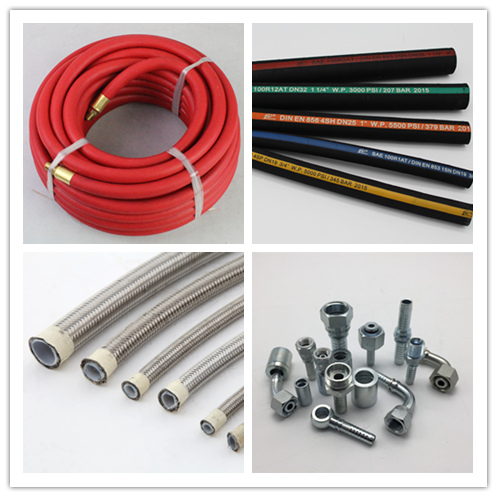

Other products we supply:
* Hydraulic Fittings
* PTFE Hoses
* Rubber Air/Water Hoses
* Rubber Gas/LPG Hoses
* Fuel Hoses
* Other kinds of Rubber and Plastic Hoses
