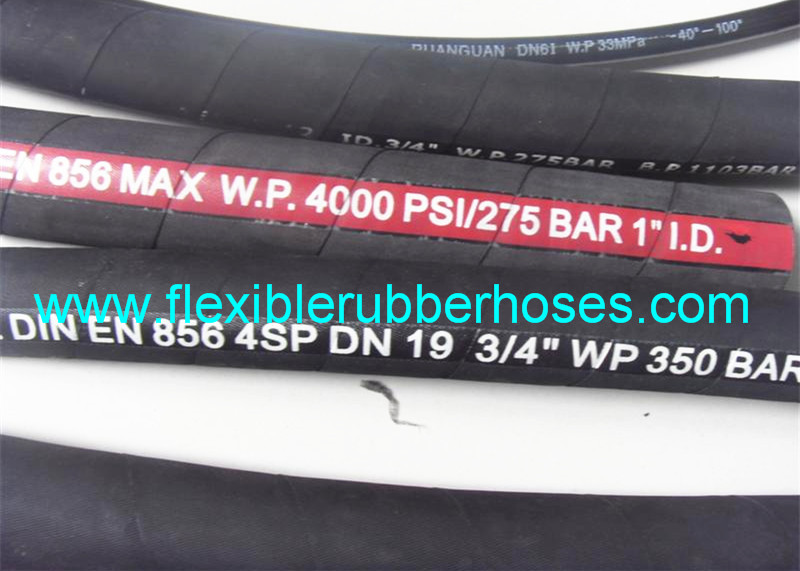

ID 1/4" ~ 2" , EN 856 4SP , 4 Wire Hydraulic Hose , Black Cloth
Wrapped Cover
Specifications Sheet:
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
1/4'' | 6.4 | 17.9 | 452 | 6500 | 1806 | 26200 | 50 | | |
3/8'' | 9.5 | 21.4 | 445 | 6450 | 1779 | 25800 | 50 | 0.039 | 0.85 |
1/2'' | 12.7 | 24.6 | 414 | 6000 | 1655 | 24000 | 50 | 0.044 | 1 |
5/8'' | 15.9 | 28.2 | 345 | 5000 | 1379 | 20000 | 50 | 0.049 | 1.3 |
3/4" | 19 | 32.2 | 345 | 5000 | 1379 | 20000 | 50 | 0.059 | 1.9 |
1" | 25.4 | 39.3 | 276 | 4000 | 1103 | 16000 | 40 | 0.1 | 2.3 |
11/4" | 32 | 50..8 | 210 | 3045 | 840 | 12180 | 40 | 0.12 | 2.9 |
11/2" | 38.5 | 57.2 | 185 | 2680 | 740 | 10730 | 40 | 0.169 | 3.4 |
2" | 51.2 | 69.8 | 165 | 2390 | 660 | 9570 | 40 | 0.27 | 5 |
Description:

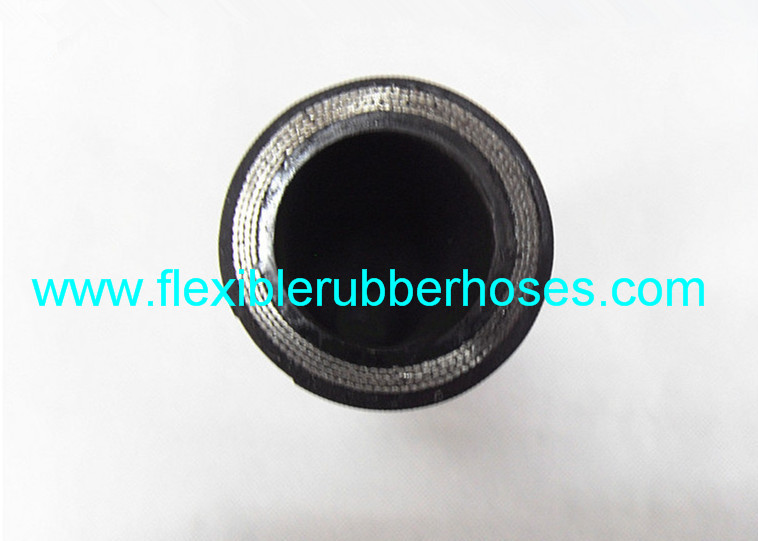

This hose shall consist of an inner tube of oil resistant synthetic
rubber, four layers of spiral plies of steel wire wrapped in
alternating directions, and an oil and weather resisitant synthetic
rubber cover.
Hose Material: Tube: NBR ( neoprene)
Reinforcement: four alternating layers of spiral high-tensile steel
wire
Cover: NBR (neoprene)
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue.
In many hydraulics systems, inflexible or rigid pipes or tubes are
used to transfer energy-generating liquid between different
components to form a complete hydraulic circuit. Pipes and tubes
can be rigid in order to bridge small amounts of space in a
controlled manner. For instance, in a hydraulic circuit contained
within a small casing, there is no extra room for piping, so the
connections must be rigid and contained within the casing.
Some hydraulic circuits have much more liberal space accommodations
or even require connection flexibility to facilitate faster
replacement or range of motion operations. For example, many
construction machines have external, flexible hydraulic hose
connections so the tools are free to move.
A number of standards exist for hydraulic hose production and use.
Standards govern industry connection specifications and hose
material, as well as guide installation operations.
Application:
Very high pressure applications subject go surges or flexing such
as construction equipment, mining and the high performance
industrial market. Hose range suitable for use with petroleum base
hydraulic fluids within a temperature rang of -40℃- + 100℃.
FAQ:
Q1. Do you produce smooth or cloth wrapped cover?
A. We can produce both cover, according to your request.
Q2. Can you provide free samples?
A. Yes, free samples are available.
Q3. How many kinds of payments do you have and what is your main
one?
A. We have more than three kinds of payment, the main one is 30%
deposite and 70% against the copy of B/L.
Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 30 working days
for a 20' container)
Competitive Advantage:
1. We can provide matching hose connections.
2. We can offer free hose sample.
3. Other hydraulic rubber hoses are also served here like SAE
100R1, SAE 100R2 etc.
4. Other sizes can be customized.
5. We can print words on the hose according to your requirement. We
can design the printing for you.
6. We can package the goods according to your requirement.
7. For the sizes from 1" to 2", we can produce 40 meters per roll.
8. We have a set of equipments to test the hydraulic hoses like
pulse test. The quality of our hydraulic hoses are stable.
