    Stainless Steel Braided Hose Smooth Bore 100M Length For Marine Industry

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : FE Hose, SAE 100R14
    Certification : ISO 9001-2008, CE
    Price : Negotiable
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 300000M/Month
    Delivery Time : within 25days after we have received the advanced payment.
    • Product Details
    • Company Profile

    Stainless Steel Braided Hose Smooth Bore 100M Length For Marine Industry

    Stainless Steel Braided Hose Smooth Bore 100M Length For Marine Industry


    Description:

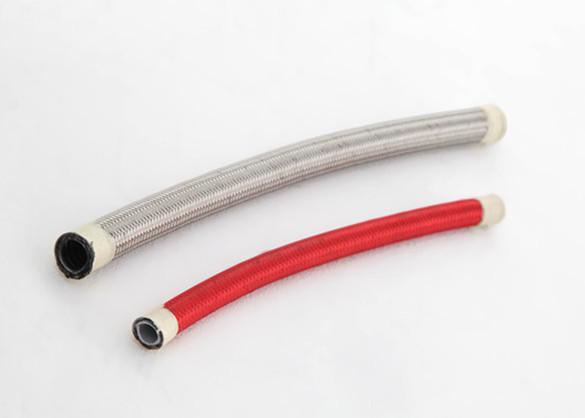

    Smooth Surface Stainless Steel Braided PTFE Hoses

    Construction: Tube: The imported F-205 of Japan Daikin

    Cover: SS304 braided.

    Temperature: -50℃ to +260℃

    Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc

    Standard length: 100m (Random Length).


    Sizes

    Item code

    Inner Diameter

    Outer Diameter

    Working Pressure

    Burst Pressure

    Length

    Weight

    inch

    mm

    mm

    bar

    bar

    m

    kg/m

    PPT-02

    1/8"

    3.5

    6.2

    314

    1080

    100

    0.07

    PPT-03

    3/16"

    5.0

    7.7

    256

    752

    100

    0.09

    PPT-04

    1/4"

    6.5

    9.3

    232

    644

    100

    0.11

    PPT-05

    5/16"

    8.0

    10.8

    180

    504

    100

    0.15

    PPT-06

    3/8"

    10.0

    12.7

    152

    426

    100

    0.17

    PPT-08

    1/2"

    13.0

    16.3

    90

    270

    100

    0.31

    PPT-10

    5/8"

    16.3

    19.3

    80

    240

    50

    0.47

    PPT-12

    3/4"

    19.0

    22.3

    70

    196

    50

    0.57

    PPT-14

    7/8"

    22.5

    25.8

    60

    175

    50

    0.7

    PPT-16

    1"

    25.4

    29.8

    50

    150

    50

    0.8


    *The Inner Diameter and Outer Diameter only refer to the PTFE Hose inside, when you measure please

    don’t include the Stainless Steel.

    *The Hose is tested when the Hose is under condition of rest.

    *Temperature-Pressure:

    20C---------P

    100C-------0.43P

    150C----------0.3P

    200C------------0.22P

    220C--------------0.2P
