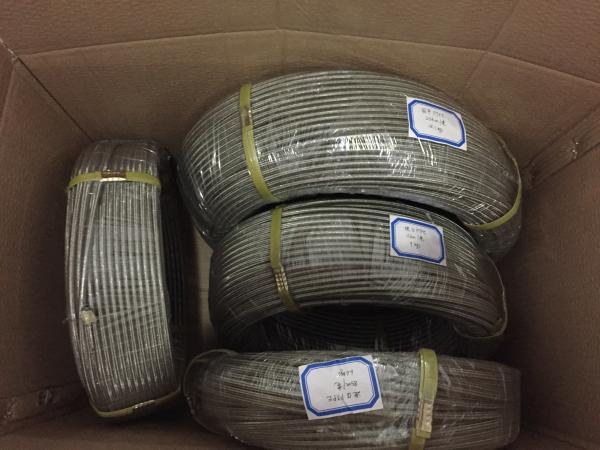

    SAE100 R1 4 Braided PTFE Braided Hose for Hydraulic Oil Corrguated Surface

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : SAE 100R14
    Certification : ISO 9001-2008, CE
    Price : negotiation
    Payment Terms : T/T, western Union, L/C, Money Gram
    Supply Ability : 30,000m per month
    Delivery Time : 30 working days after received your payment t
    • Product Details
    • Company Profile

    SAE100 R1 4 Braided PTFE Braided Hose for Hydraulic Oil Corrguated Surface

    SAE100 R1 4 Braided PTFE Braided Hose for Hydraulic Oil Corrguated Surface


    Specifications:


    Material

    Temperature chemical resistant PTFE material. +304 Stainless Steel Braided

    Temperature

    -50℃-260℃

    I.D(inch)

    1/8’’-1’’

    I.D 1/8inch

    Specially used as brake hose.

    I.D*O.D(mm)

    6.0*8.7-25.0*29.5

    W.P

    179.5BAR-48.8BAR

    B.P

    718BAR-195BAR

    Length/roll(m)

    >50

    Application

    Used on Mechanical hydraulic system in Shipping Industry, Auto

    Industry and Ocean Industry.

    Type

    Smooth Surface and Corrguated Surface

    Type

    Imported PTFE Material and Made in China PTFE Material.


    Description:


    Smooth Surface Stainless Steel Braided PTFE Hoses

    Construction: Tube: The imported F-205 of Japan Daikin

    Cover: SS304 braided.

    Temperature: -50℃ to +260℃


    Application:


    Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic

    system etc

    Standard length: 100m (Random Length).


    Sizes


    Item code

    Inner Diameter

    Outer Diameter

    Working Pressure

    Burst Pressure

    Length

    Weight

    inch

    mm

    mm

    bar

    bar

    m

    kg/m

    PPT-02

    1/8"

    3.5

    6.2

    314

    1080

    100

    0.07

    PPT-03

    3/16"

    5.0

    7.7

    256

    752

    100

    0.09

    PPT-04

    1/4"

    6.5

    9.3

    232

    644

    100

    0.11

    PPT-05

    5/16"

    8.0

    10.8

    180

    504

    100

    0.15

    PPT-06

    3/8"

    10.0

    12.7

    152

    426

    100

    0.17

    PPT-08

    1/2"

    13.0

    16.3

    90

    270

    100

    0.31

    PPT-10

    5/8"

    16.3

    19.3

    80

    240

    50

    0.47

    PPT-12

    3/4"

    19.0

    22.3

    70

    196

    50

    0.57

    PPT-14

    7/8"

    22.5

    25.8

    60

    175

    50

    0.7

    PPT-16

    1"

    25.4

    29.8

    50

    150

    50

    0.8


    *The Inner Diameter and Outer Diameter only refer to the PTFE Hose inside, when you measure please

    don’t include the Stainless Steel.

    *The Hose is tested when the Hose is under condition of rest.

    *Temperature-Pressure:

    20C---------P

    100C-------0.43P

    150C----------0.3P

    200C------------0.22P

    220C--------------0.2P


    Smooth Surface Stainless Steel Braided PTFE Hoses


    serial

    Inner Diameter

    MM

    Outer Diameter (mm)

    Outer Diameter
    after braided
    (mm)

    Bending Radius
    (mm)

    W.P
    (KG)

    Length
    (m)

    1

    5/16''

    8(±0.3)

    11.5

    13(±0.3)

    20.3

    97

    1-50

    2

    3/8''

    10(±0.3)

    12.3

    13.8(±0.3)

    25.4

    76

    1-50

    3

    1/2''

    13(±0.3)

    17.5

    19.5(±0.3)

    52

    50

    1-50

    4

    5/8''

    16(±0.3)

    20.8

    22.1(±0.3)

    76.2

    45

    1-50

    5

    3/4''

    19(±0.3)

    24.6

    26.5(±0.3)

    88.9

    38

    1-50

    6

    1''

    25.4(±0.3)

    30.0

    32.0(±0.3)

    99

    30

    1-50


    PS:* Above is Standard Sizes, we have imported Material and Chinese Made Material two types, we also

    have customize based on your request.

    *We tested and get above result under constant temperature, the length can reach as long as 60M/PC.


    Application:


    Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic

    system etc


    Competitive Advantage:


    * The highest working temperature can reach 300℃, and the lowest working temperature can reach -70℃.

    *Very good wear-resisting property.

    *Strong chemical resistance property makes PTFE Hose can work under all the strong acid and strong

    alkali medium.

    *Very good anti-sticking property, Chemical Material will not be on Inner Hose, so there will not be dirt.

    * Strong aging resistance and radio resistance makes Hose can expose to outerdoor.
