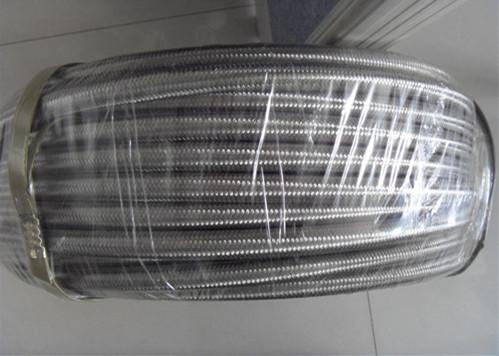

    Stainless Steel PTFE Braided Hose , 3 / 8" Braided Hose

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : imported PTFE Hose, SAE 100R14
    Certification : ISO 9001-2008, CE
    Price : Negotiable
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 300000M/Month
    Delivery Time : within 25days after we have received the advanced payment.
    • Product Details
    • Company Profile

    Stainless Steel PTFE Braided Hose , 3 / 8" Braided Hose

    Stainless Steel PTFE Braided Hose , 3 / 8" Braided Hose.


    Description:

    Among The Sizes (1/8''-1''), customers may need to pay attention to the size-1/4''.

    For the size-1/4'', the I.D represents both 6.5mm I.D and 6mm I.D. Normally, Chinese customers buy 6mm I.D, and for exporting, customers buy 6.5mm I.D.

    If you need 1/4'', please let us know do you need 6mm I.D or 6.5mm I.D?


    Stainless Steel Braided Smoothbore Flexible PTFE Lined Hose

    Construction: Tube: Imported PTFE Material.

    Cover: SS304 braided.

    Temperature: -50℃ to +260℃

    Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc

    Standard length: 100m (Random Length).


    Specifications


    Material

    Temperature chemical resistant PTFE material. +304 Stainless Steel Braided

    Temperature

    -50C-260C

    I.D(inch)

    1/8’’-1’’

    I.D 1/8inch

    Specially used as brake hose.

    I.D*O.D(mm)

    6.0*8.7-25.0*29.5

    W.P

    179.5BAR-48.8BAR

    B.P

    718BAR-195BAR

    Length/roll(m)

    >50

    Application

    Used on Mechanical hydraulic system in Shipping Industry, Auto Industry and Ocean Industry.

    Type

    Smooth Surface and Corrguated Surface

    Type

    Imported PTFE Material and Made in China PTFE Material.


    Sizes List


    Item code

    Inner Diameter

    Outer Diameter

    Working Pressure

    Burst Pressure

    Length

    Weight

    inch

    mm

    mm

    bar

    bar

    m

    kg/m

    PPT-02

    1/8"

    3.5

    6.2

    314

    1080

    100

    0.07

    PPT-03

    3/16"

    5.0

    7.7

    256

    752

    100

    0.09

    PPT-041/4''6.08.72407181000.10

    PPT-04

    1/4"

    6.5

    9.3

    232

    644

    100

    0.11

    PPT-05

    5/16"

    8.0

    10.8

    180

    504

    100

    0.15

    PPT-06

    3/8"

    10.0

    12.7

    152

    426

    100

    0.17

    PPT-08

    1/2"

    13.0

    16.3

    90

    270

    100

    0.31

    PPT-10

    5/8"

    16.3

    19.3

    80

    240

    50

    0.47

    PPT-12

    3/4"

    19.0

    22.3

    70

    196

    50

    0.57

    PPT-14

    7/8"

    22.5

    25.8

    60

    175

    50

    0.7

    PPT-16

    1"

    25.4

    29.8

    50

    150

    50

    0.8


    *The Inner Diameter and Outer Diameter only refer to the PTFE Hose inside, when you measure please don’t include the Stainless Steel.


    *The Hose is tested when the Hose is under condition of rest.

    *Temperature-Pressure:

    20C---------P

    100C-------0.43P

    150C----------0.3P

    200C------------0.22P

    220C--------------0.2P



    For more detailed information, please contact us.
