    Red Rubber Air Hose with BSP Or NPT Fittings , Rubber Air Line BP 900 / 1200 Psi

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : ID 3/8"
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : Western Union, MoneyGram, L/C, T/T, PayPal
    Supply Ability : 100,000 pcs per month
    Delivery Time : 30 days for 20' FCL
    • Product Details
    • Company Profile

    Red Rubber Air Hose with BSP Or NPT Fittings , Rubber Air Line BP 900 / 1200 Psi

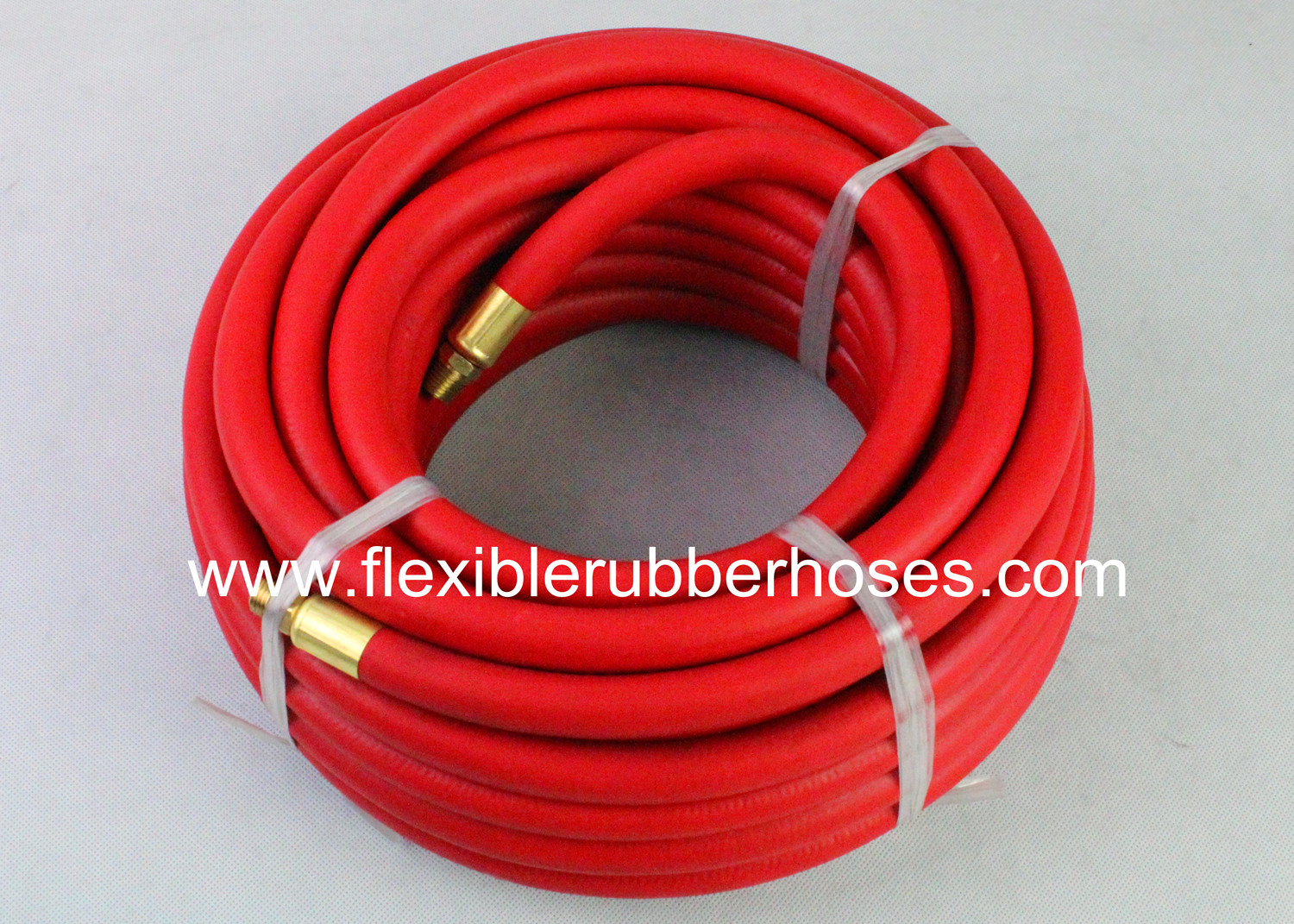

    ID 3/8" Rubber Air Line with BSP or NPT fittings, BP 900 psi and BP 1200 psi


    Construction: Tube: NR& SBR synthetic rubber.

    Reinforcement: High tensile polyester fiber braided.

    Cover: NR & SBR synthetic rubber.


    Temperature: -30℃ - +80℃


    Color: Red, Yellow, Blue, Green, Orange, Black, etc.


    Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.


    Standard length: 25ft (7.6m), 50ft(15m)


    Specification of hose:

    Inner Diameter

    Outer Diameter

    Working Pressure

    Burst Pressure

    Length

    Weight

    inch

    mm

    mm

    bar

    psi

    bar

    psi

    Ft/pc

    kg/pc

    3/8"

    10

    17

    20

    300

    60

    900

    25

    2.26

    3/8"

    10

    17

    20

    300

    60

    900

    50

    4.40

    3/8"

    10

    17

    20

    300

    80

    1200

    25

    2.29

    3/8"

    10

    17

    20

    300

    80

    1200

    50

    4.43


    Specification of fittings:

    Brass 1/4” Male NPT fittings on both ends of the hose.

    Brass 1/4” Female BSP fittings on both ends of the hose.


    Competitive Advantage:

    PASSION® Rubber air hose assembly, is popular in UK (bsp fitting), USA and Canada (NPT fitting), made of non-recycled rubber, according to ISO-2398 standard.

    Hangzhou Paishun can crimp the specified fittings and quick released coupling on the rubber air hose.

    If you have some special request of size, Hangzhou Paishun can also customize for you.
