    Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal ( 26711 )

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : JIC FEMALE 26711
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram
    Supply Ability : 60,000 pcs per month
    Delivery Time : Within 20 to 30 days after we receive advance payment
    • Product Details
    • Company Profile

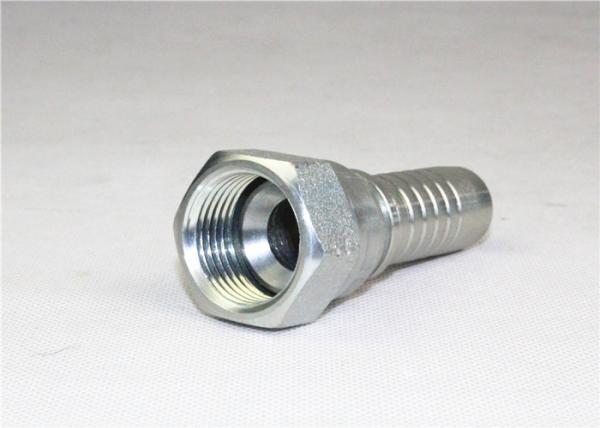

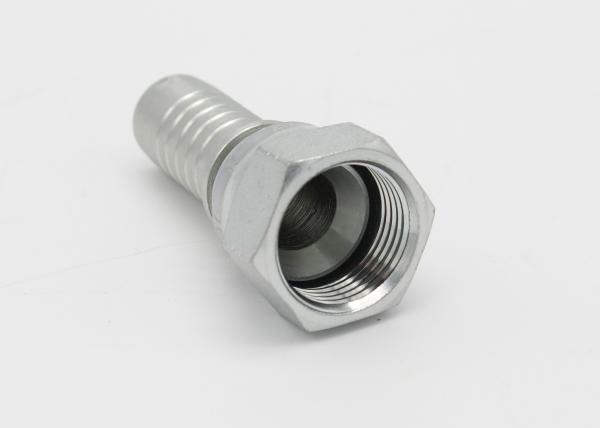

    Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal ( 26711 )


    Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal 26711


    Applications:

    Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

    oilfield, mine, building, transportation and other industries.


    Standard: Yonghua

    Technology: Hot forging

    Material: carbon steel 45# or Stainless steel 304/316


    Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
    It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.
    It passes a 96 h salt spray test in accordance with ASTM B 117.



    Specifications:


    JIC FEMALE 74 DEGREE CONE SEAT


    Catalogue of Straight JIC Female Fitting.pdf


    26711 26711-T

    Part No.Thread EHose BoreDimensions
    DNDASHACS2
    26711-04-037/16"x2050314.5915
    26711-04-047/16"x2060415915
    26711-05-041/2"x2060415.59.517
    26711-05-051/2"x2080515.59.517
    26711-05-061/2"x20100615.59.517
    26711-06-049/16"x1860415.510.519
    26711-06-059/16"x1880515.510.519
    26711-06-069/16"x18100615.510.519
    26711-06-089/16"x1812081610.519
    26711-08-063/4"x16100617.51124
    26711-08-083/4"x161208181124
    26711-08-103/4"x16161019.51124
    26711-10-087/8"x14120818.51327
    26711-10-107/8"x141610201327
    26711-10-127/8"x142012201327
    26711-12-08T1.1/16"x121208191532
    26711-12-101.1/16"x12161021.51532
    26711-12-121.1/16"x12201221.51532
    26711-12-161.1/16"x122516231532
    26711-14-121.3/16"x12201221.51536
    26711-16-12T1.5/16"x12201218.51641
    26711-16-161.5/16"x122516231641
    26711-16-201.5/16"x123220241641
    26711-20-16T1.5/8"x122516231750
    26711-20-20W1.5/8"x123220261750
    26711-24-20W1.7/8"x12322026.52055
    26711-24-24W1.7/8"x12402426.52055
    26711-32-20T2.1/2"x1232202723.575
    26711-32-32T2.1/2"x1250322723.575

    Note: 1 for use with braided hoses, textile hoses and thermoplastic hoses, if use with spiral hoses, hose fitting series number is 26712-**-**.



    Other Hydraulic Hose Ferrule Fitting Products:

    Production Flow:


    Material of ferrule: carton steel 20#

    Material of fitting: carton steel 45#

    All of our machines are CNC machines



    Packgaing and Shipping:


    Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

    Wooden Case: 110cm X 80cm X 75cm

    Usually 42 corragetd cartons are packed in a wooden case.
