    87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI Flange For Oilfield , Mine Industriy ( 87691 )

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : Flange 87691
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram
    Supply Ability : 60,000 pcs per month
    Delivery Time : Within 20 to 30 days after we receive advance payment
    • Product Details
    • Company Profile

    87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI Flange For Oilfield , Mine Industriy ( 87691 )


    87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI Flange For Oilfield , Mine Industriy


    Descrioption:


    It is hydraulic hose fitting 90 degree SAE Flange 87691.


    Applications:

    Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

    oilfield, mine, building, transportation and other industries.


    Specifications:


    90 DEGREE SAE FLANGE 6000PSI ISO 12151-3-SAE J516



    Part No.FLANG SIZEHose BoreDimensions
    DNDASHACDHL
    87691-08-081/2"12084131.724487.75
    87691-12-103/4"16105641.33256.58.76
    87691-12-123/4"201265.541.332668.76
    89691-16-121"201265.547.638699.53
    87691-16-161"251676.747.63874.59.53
    87691-16-201"322091.547.63885.59.53
    87691-20-161.1/4"251676.7544478.510.29
    87691-20-201.1/4"322091.5544489.510.29
    87691-24-201.1/2"322091.563.55194.512.57
    87691-24-241.1/2"4024109.463.55110812.57
    87691-32-242"4024109.479.46711612.57
    87691-32-322"5032131.879.467136.312.57

    Note: 1 for use with braided hoses, textile hoses and thermoplastic hoses, if use with spiral hoses, hose fitting series number is 87692-**-**.

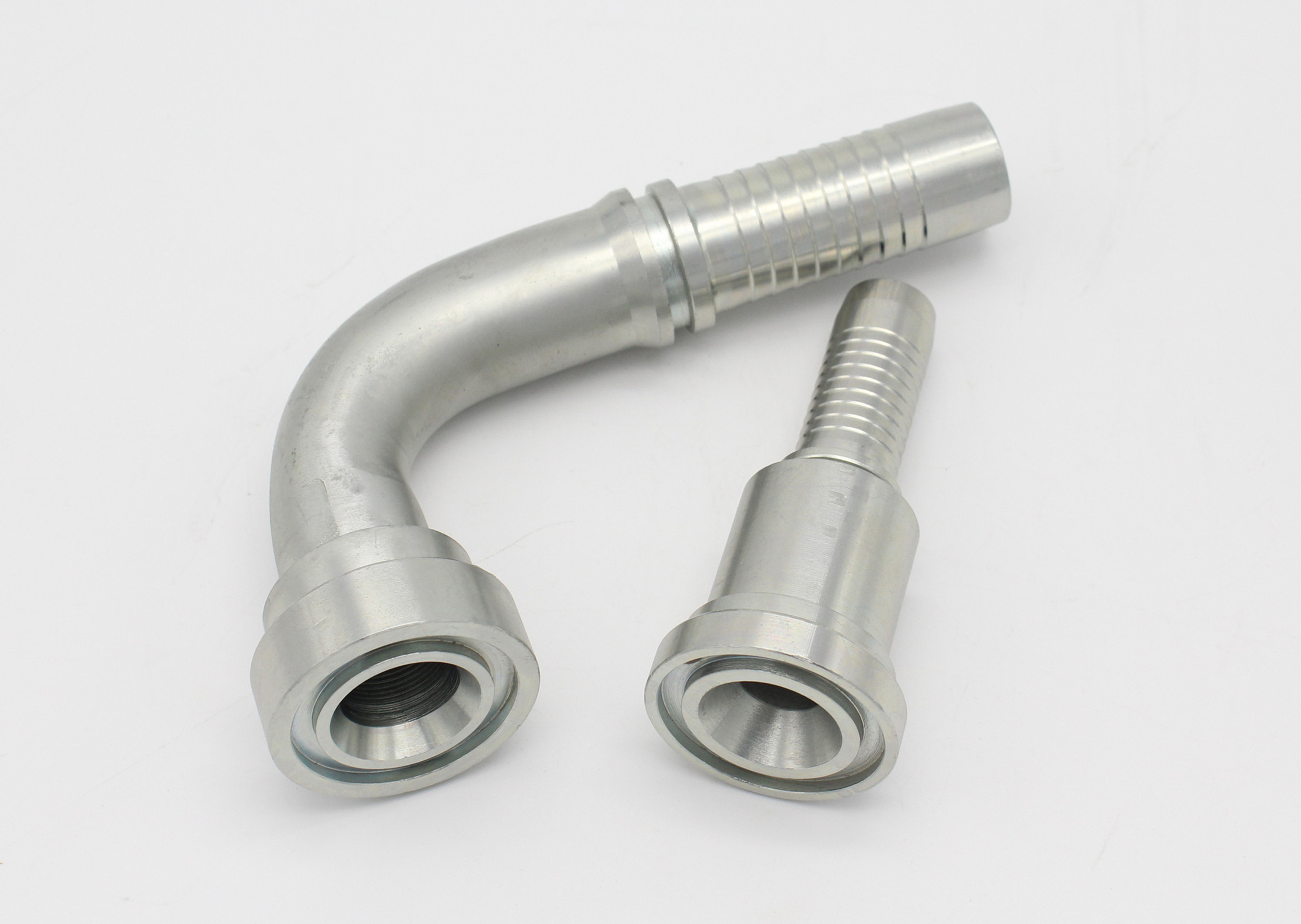

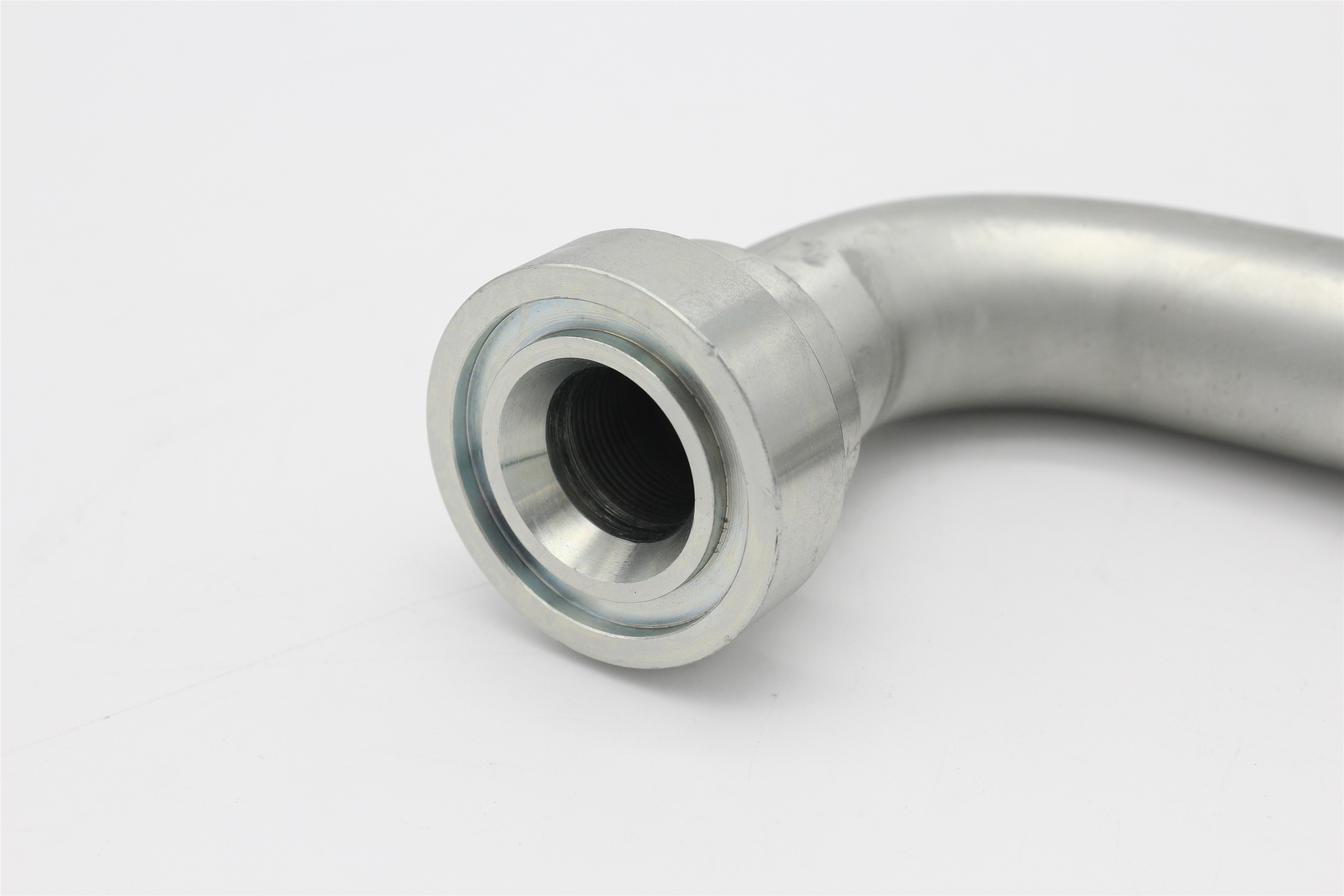

    It is hydraulic hose fittings SAE Flange in silver color.
