    Hydraulic Hose Connectors With Straight ORFS Female Swivel Flat Seat

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : 24211 (T)
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram
    Supply Ability : 60,000 pcs per month
    Delivery Time : Within 20 to 30 days after we receive advance payment
    • Product Details
    • Company Profile

    Hydraulic Hose Connectors With Straight ORFS Female Swivel Flat Seat


    Hydraulic Hose Connectors With Straight ORFS Female Swivel Flat Seat


    Descrioption:

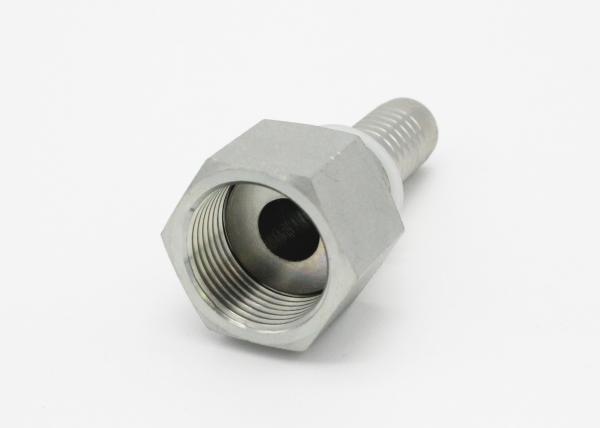

    It is hydraulic hose connetor straight ORFS Flat Seal (24211 T). It is Americal style one.


    Application:

    Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

    oilfield, mine, building, transportation and other industries.


    Specification:


    ORFS FEMALE FLAT SEAT ISO 12151-1 -- SAE J516



    24211 24211-T 24211-W


    Part No.Thread EHose BoreDimensions
    DNDASHABS2
    24211-04-049/16"x1860422.58.519
    24211-04-059/16"x1880522.58.519
    24211-04-069/16"x18100622.58.519
    24211-06-04T11/16"x1660423.51022
    24211-06-05T11/16"x1680523.51022
    24211-06-0611/16"x16100625.51022
    24211-06-0811/16"x161208261022
    24211-08-05T13/16"x16805251127
    24211-08-06T13/16"x161006251127
    24211-08-0813/16"x161208281127
    24211-08-1013/16"x161610291127
    24211-10-08T1"x14120829.513.530
    24211-10-101"x1416103313.530
    24211-10-121"x14201233.513.530
    24211-12-08T1.3/16"x12120830.51536
    24211-12-10T1.3/16"x12161031.51536
    24211-12-121.3/16"x122012351536
    24211-12-161.3/16"x122516361536
    24211-16-12T1.7/16"x1220123514.841
    24211-16-14T1.7/16"x1222143514.841
    24211-16-16T1.7/16"x1225163514.841
    24211-16-201.7/16"x12322039.514.841
    24211-20-16T1.11/16"x122516351550
    24211-20-20W1.11/16"x12322042.51550
    24211-20-24W1.11/16"x12402442.51550
    24211-24-20T2"x1232203614.860
    24211-24-24T2"x1240243614.860

    Note: 1 for use with textile hoses, braided hoses and thermoplastic hoses.
    If use with spiral hoses, hose fitting series number is 24212-**-**.

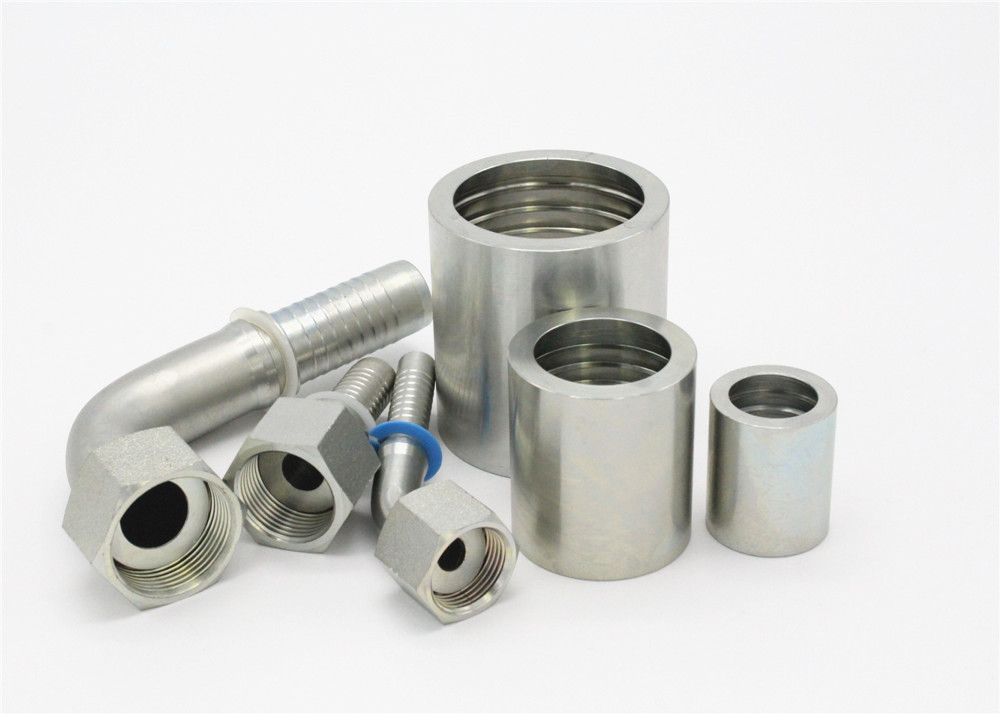

    Other Hydraulic Hose Ferrule Fitting Products:



    Production Flow:


    Material of ferrule: carton steel 20#

    Material of fitting: carton steel 45#

    All of our machines are CNC machines



    Packgaing and Shipping:


    Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

    Wooden Case: 110cm X 80cm X 75cm

    Usually 42 corragetd cartons are packed in a wooden case.


    Competitive Advantage:

    -Our factory owns a group of high quality and high-tech professional designers and personnel group. It
    possesses a series of the fully automatic computer CNC machine tools and high precision lathes, the
    multiple spindles too machines, hexangular tool machines and electric heated bent pipe machines. We
    have strictly adopted the professional personnel to carry on the tests and examinations for our products

    in order to provide an assurance in the high-quality for all the customers.


    -Our factory success fully obtained the international quality certification system: ISO9001:2000 and

    domestic production permit of hydraulic hose fittings.


    -Our hydraulic hose fittings have been exported to many countries and areas in Europe, America, the

    Middle East, the Southeast Asia and the South America.


    -The material of our hydraulic hose fittings is good quality carton steel #45.


    -Our warehouse is on the second floor, it is better to keep dry of stock of fittings.


    -Our hydraulic hose fittings are well packed in cartons and wooden boxes. It is better to avoid fitting

    damping.


    -The branding can be printed on the fittings.


    -The fittings can be customized according to samples or drawings.


    - We have crimping machine to crimp hydraulic hose assembly.


    - We use new technic to galvanize zinc. It makes carbon steel fitting looks like stainless steel one. The appearance is fantastic.
