    High Pressure Hydraulic Hose Fitting SAE 100 R12 / EN 856 4SH / 4SP ( 15612 )

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : 15612
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram
    Supply Ability : 60,000 pcs per month
    Delivery Time : Within 20 to 30 days after we receive advance payment
    • Product Details
    • Company Profile

    High Pressure Hydraulic Hose Fitting SAE 100 R12 / EN 856 4SH / 4SP ( 15612 )

    High Pressure Hose Fittings For Hydraulic Hose SAE 100 R12 / EN 856 4SH / 4SP

    ( 15612 )


    Descrioption:

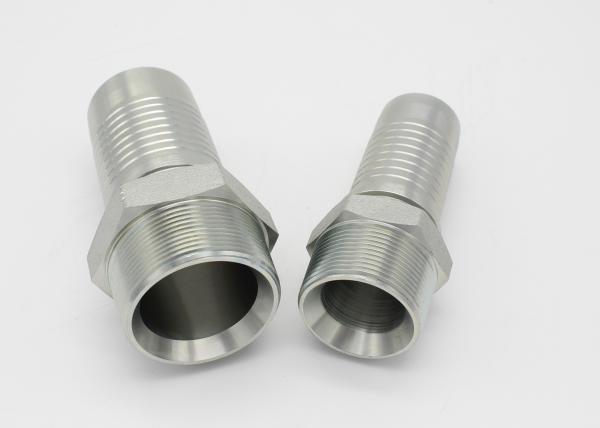

    It is hydraulic hose fitting NPT male (15612). It is used with high pressure hydraulic hose, like SAE

    100R12, EN 856 4SP and EN 856 4SH


    Application:

    Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

    oilfield, mine, building, transportation and other industries.


    Specification:


    Catalogue of Male NPT Fitting.pdf


    NPT MALE



    Part No.Thread EHose BoreDimensions
    DNDASHACS1
    15612-06-06Z3/8"x181006291619
    15612-06-08Z3/8"x18120830.51622
    15612-08-06Z1/2"x1410063419.522
    15612-08-08Z1/2"x14120835.519.522
    15612-08-10Z1/2"x14161037.519.527
    156612-12-08Z3/4"x14120837.519.527
    15612-12-10Z3/4"x14161038.519.527
    15612-12-12Z3/4"x14201239.519.532
    15612-16-10Z1"x11.516104519.536
    15612-16-12Z1"x11.520124525.536
    15612-16-16Z1"x11.5251646.525.536
    15612-20-16Z1.1/4"x11.525164925.546
    15612-24-20TZ1.1/2"x11.5322050.526.546
    15612-24-24Z1.1/2"x11.540245127.550
    15612-32-32Z2"x11.550325527.565
