    ID 3/8" 1/2" Braided Push Lock Fuel Line 300 PSI Non - Clamping Long Service Life

    Ask Lasest Price
    Brand Name : PAISHUN
    Model Number : ID 3/8" 1/2"
    Certification : CE ISO 9001-2015
    Price : 2.5 USD per meter
    Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 100,000 meters per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

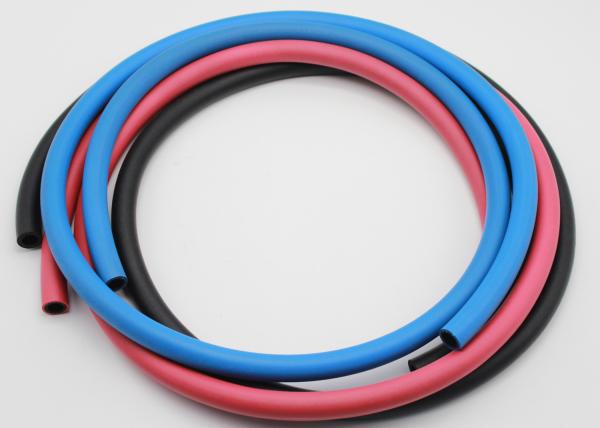

    ID 3/8" 1/2" Braided Push Lock Fuel Line 300 PSI Non - Clamping Long Service Life


    ID 3/8" 1/2" Push lock Fuel Line 300 PSI Non - Clamping Long Service Life


    PUSH ON HOSE, PUSH- LOK HOSE, PUSH LOCK HOSE


    Non-clamp fastening, RMA super oil resistant, wear resistant and bending resistant;

    120℃ temperature resistant, applicable to outdoor harsh environment, excellent durability;


    Application: High-quality multipurpose push-on hose is especially designed for manipulators and automation equipment, with flexibility, durability and high tensile strength. It is especially suitable for transporting gas, oils, air, water and emulsified liquid at rigorous occasions in assembly line, mold, robot and T-grade welding. It is non-conducting, and can withstand 6000V or above voltage.


    Technical characteristics: It is produced according to the highest European and American standards, so that it can withstand severe tests in aspect of air-tightness, durability and pressure safety.


    The hose stands 5 million times of bending tests, is applicable to rolling-up of spindle, in particular to occasions needing repeated bending or friction;


    It has excellent anti-UV property, can be used around clock.


    By dedicated push-on connectors, it can be fastened without clamps.


    Structure:


    Inner rubber layer: black RMA-A super oil-resistant and gas-tight NBR synthetic rubber;


    Outer rubber layer: Oil-resistant, wear-resistant and super anti-aging CSM synthetic rubber.


    Reinforced layer: high-strength fiber reinforced layer.


    Appearance: Glossy, commonly in black, red or blue, or customized colors.


    Working pressure: W.P 300 PSI


    Safety factor: 4 times


    Temperature: -30 to 120℃ (Free clip fastening temperature -30 to 80 ℃; With clamps temperature -30 to 120℃)


    Packing: Standard export packing with double protection. Available for specific length cutting and pallet package according to customer needs.


    Technical standard: ISO 19013 AS 1869


    Product numberspecificationsI.D (mm)O.D (mm)W.P (PSI)B.P (PSI)Bend Radius (mm)Weight (kg/m)Length (m/pc)
    push on hose -061/4"6.413.03001200500.15100
    push on hose -085/16"7.915.03001200600.18100
    push on hose -103/8"9.517.03001200700.23100
    push on hose -131/2"12.721.030012001200.31100
    push on hose -165/8"15.924.030012001500.3860
    push on hose -193/4"19.028.030012001700.5060
    push on hose -251"25.436.030012002000.7460
