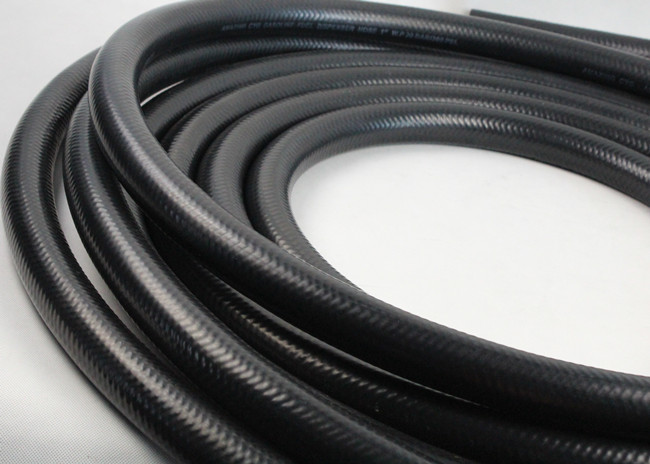

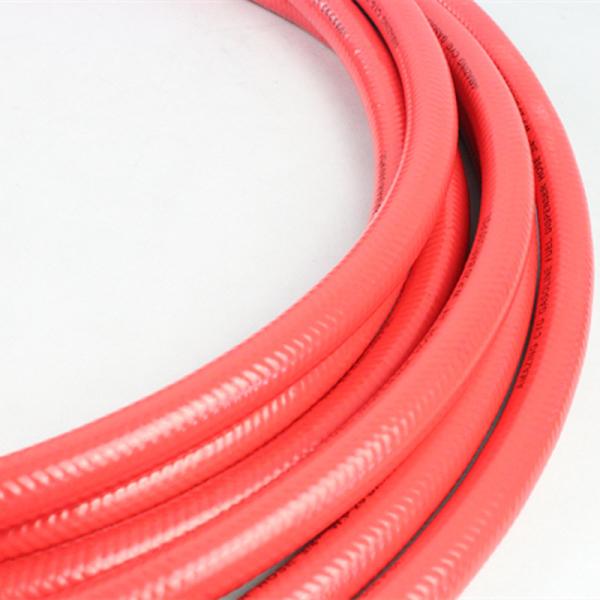

Flexible Anti-Static Steel Wire Braided Fuel Dispensing Pump
Delivery Hose for Auto Fuel Dispensers
Specifications:
| Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
| | inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| HPR-1 | 5/8’’ | 15.9 | 25.4 | 30 | 450 | 120 | 1740 | 50 | 0.07 | 0.57 |
| HPR-2 | 3/4’’ | 19 | 28 | 30 | 450 | 120 | 1740 | 50 | 0.08 | 0.65 |
| HPR-3 | 1’’ | 25 | 35.5 | 30 | 450 | 120 | 1740 | 50 | 0.124 | 0.82 |
Description:
1, Construction: Tube: NBR Synthetic Rubber
Reinforcement: Single High-strength wire braided.
Cover: NBR Synthetic Rubber
2, Appearance: Smooth finish with plastic coating, Black, Red,
Blue, Green
3, Applicable temperature: -40℃ to +80℃
4, Bend radius: 10 times of proper diameter dimension
5, Package: Common packed by strong braided strap.
The pallet packing are available, the color sticker can be offerd,
but shall be charged additionally.
6, Trademark: PASSION, OEM is available
7, Property: Good oil resistance and excellent flexibility. Without
craze crack or fracture after 180°bending over or doubling
8, Certificates: CE, SGS
9, Main market: Middle East, Europe and America
10: Joint Connection: Brass Chrome Plated Material, Reusable Couplings, NPT, BSPP, BSPT
Standard.
Applications: For fuel dispensing pump applications, including gasoline, diesel,
oxygenated fuels (up to a maximum of 15% oxygenated compounds),
lubricating oil, and other mineral oil etc.
Competitive Advantage:
Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose
manufacturer in the east of China. 12 years manufacturing
experience, 50 sets of braiders and 3 production lines.
Paishun has a strict quality inspection team, every shipment would be tested
before shipment.
Hose Superiorities:
1. excellent UV resistance, flexible and soft.
2. excellent aging resistance, ozone resistance and crack
resistance.
3. with color fast smooh good suface.
4. quality hose construction, quality assembly.
5. very flexible and light in weight.
6. other superiorities.
Free sample can be offered, we are happy to customize as your
request.
