    EN853 Machinery Steel 275bar Wire Reinforced Rubber Hose

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : EN853 1SN 2SN
    Certification : ISO 9001:2015, CE, Rohs
    Price : Negotiable
    Payment Terms : T/T, L/C, Money Gram, PayPal, Western Union, MoneyGram, etc.
    Supply Ability : 350,000 meters per month
    Delivery Time : 29 days
    • Product Details
    • Company Profile

    EN853 Machinery Steel 275bar Wire Reinforced Rubber Hose


    1/2" 275 Bar Two Wire Braid Hydraulic Hose Type R2/2SN with CE Certification


    Why Choose Paishun?

    1. Over 10 years experience of producing hydraulic hoses. Near to Ningbo and Shanghai port, easy to transport.
    2. Free Sample available.
    3. Factory sale, prices are competitive.
    4. Sizes can be customized as your request.
    5. OEM acceptable, your company name and logo can be printed.
    6. Customized packing method. By rolls, pallets, reels or as your request.
    7, Complete line of test machines, test every batch of goods before shipped out. Quality is stable.


    R2/2SN Hose

    Application: For delivery of petroleum and water based hydraulic fluids.

    Inner tube: Oil resistant synthetic rubber.

    Reinforcement: Two layers tensile steel wire braid.

    Outer cover: Oil, weather, and abrasion resistant synthetic rubber.

    Temperature Range: -40℃ ~ +100℃ (-40℉ ~ +212℉)

    Specification of R2/2SN Hose

    Part NumberSizeIDWDODWPBPMin Bend RadiusWeight
    inchmmmmmmbarpsibarpsimmg/m
    P03-2SN3/16″4.811.713.7415601816502392590300
    P04-2SN1/4″6.412.514.54005800160023200100380
    P05-2SN5/16″814.516.73505075140020300115435
    P06-2SN3/8″9.516.619.23304785132019140125550
    P08-2SN1/2″12.719.821.82753988110015950180640
    P10-2SN5/8″1623.225.42503625100014500205750
    P12-2SN3/4″1926.929.9215311885012325240925
    P16-2SN1″25.434.237.8165239365094253001290
    P20-2SN1 1/4″31.843.846.4125181350072504201895
    P24-2SN1 1/2″38.150.252.790130536052205002120
    P32-2SN2″50.862.865.480116032046406302765
    P40-2SN2 1/2″63.575.479.069100027640007623730
    P48-2SN3″76.287.891.35072520029009003950

    You can also download the specification below.


    Specification of R2.pdf


    Photo of SAE R2/2SN Hose


    Packing and Shipping
    Goods are well packed by colorful poly stripes or transparent OPP films.
    Can be shipped by air, by sea, by truck and by train.
    Paishun can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.


    Workshop

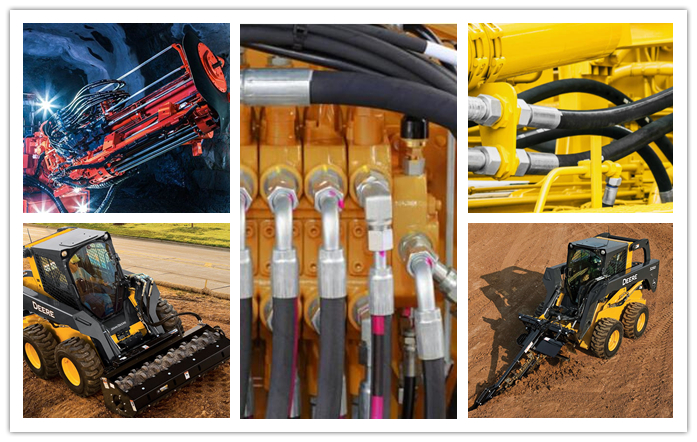

    Application

    For construction machinery equipment such as excavator, roller, forklift, etc.
