Character of PTFE
The PTFE hose material is made of Japanese Daikin.
The temperature range is -200C to +260C, melting point: 327C. It
can't be injection molded and can be pressed and formed. The max.
operating temperature is 280C.
PTFE has the following excellent properties due to its strong
carbon-fluorine bond and high molecular wieght:
1. Excellent weather resistance, long service life, no brittle
fracture and no aging.
2. Resistant to strong acid and alkali, resistant to various
corrosive chemicals.
3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
4. With a very low friction coefficuent. non-flammable.
5. With very low evaporate transpiration rate, cold liquid is not
volatile.
6. With excellent electrical charateristics (does not change with
frequency and temperature changes)
7. Excellent mechanical properties, shock resistance and
flexibility.

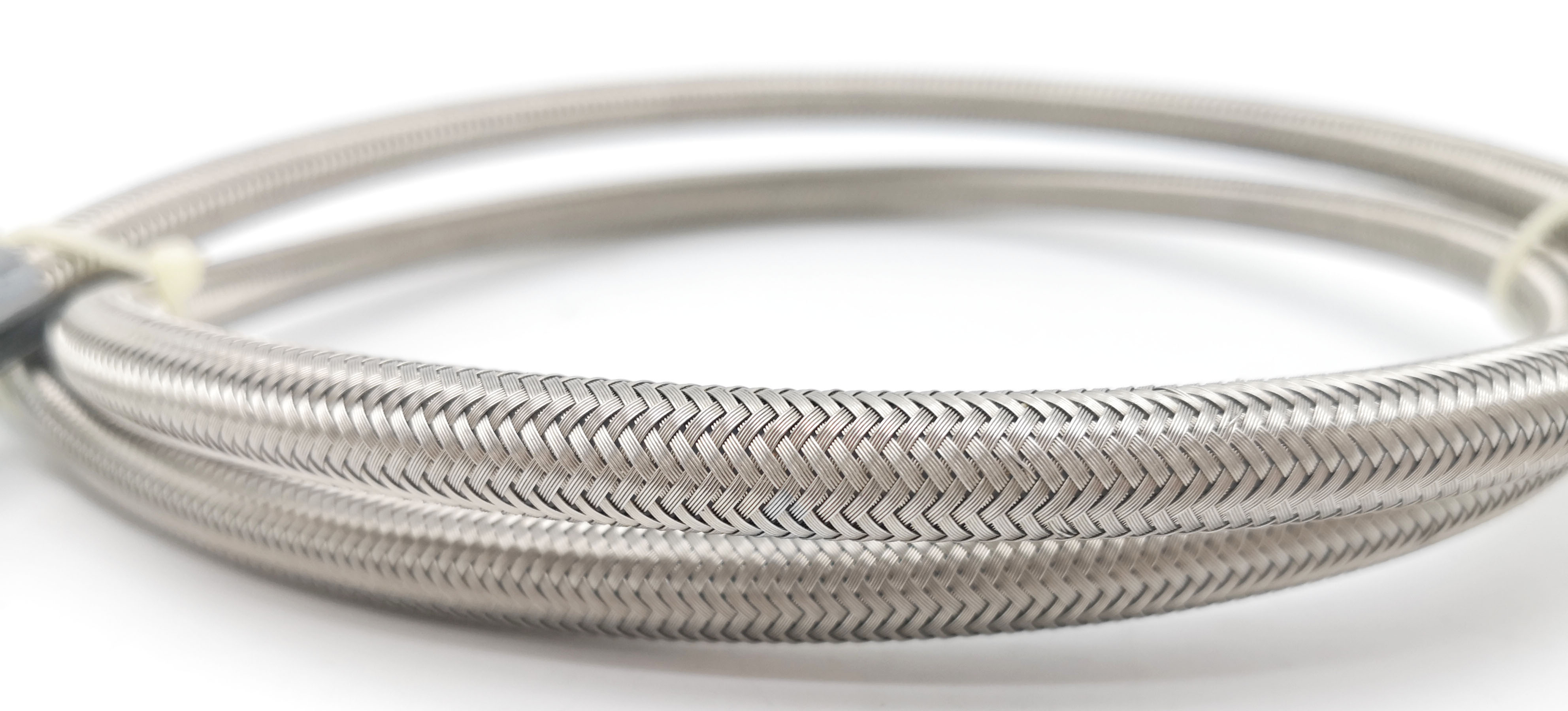

Inner tube: PTFE
Outer tube: stainless steel 304 wire braided
Temperature range: -65℃ to +260℃
Advantage:
Because of its high temperature resistance, low temperature
resistance, corrosion resistance high lubricating property,
inadhesion, toxicity and electrical insulation it is widely used in
mechanical, electrical applicances, automotive, aerospace,,
chemical, pharmaceutical, communication and other fields.
| no | Specification | I.D. | O.D. | Thickness | W.P. | B.P. | Min.Bending Radius |
| mm | mm | mm | bar | bar | mm | ||
| 1 | 1/8 | 3.5 | 6.6 | 1 | 320 | 988 | 51 |
| 2 | 3/16 | 4.8 | 7.6 | 0.85 | 242 | 726 | 75 |
| 3 | 1/4 | 6.4 | 9.2 | 0.85 | 210 | 653 | 81 |
| 4 | 5/16 | 8 | 11 | 0.85 | 188 | 587 | 92 |
| 5 | 3/8 | 9.7 | 12.8 | 0.85 | 185 | 556 | 131 |
| 6 | 1/2 | 12.7 | 15.9 | 1 | 106 | 461 | 182 |
| 7 | 5/8 | 16 | 19.2 | 1 | 90 | 382 | 211 |
| 8 | 3/4 | 19 | 22.7 | 1.2 | 78 | 269 | 338 |
| 9 | 7/8 | 22.2 | 26 | 1.2 | 60 | 195 | 421 |
| 10 | 1 | 25 | 29.3 | 1.5 | 40 | 153 | 539 |
| 11 | 2 | 50 | 55.6 | 2 | 30 | 120 | 1015 |

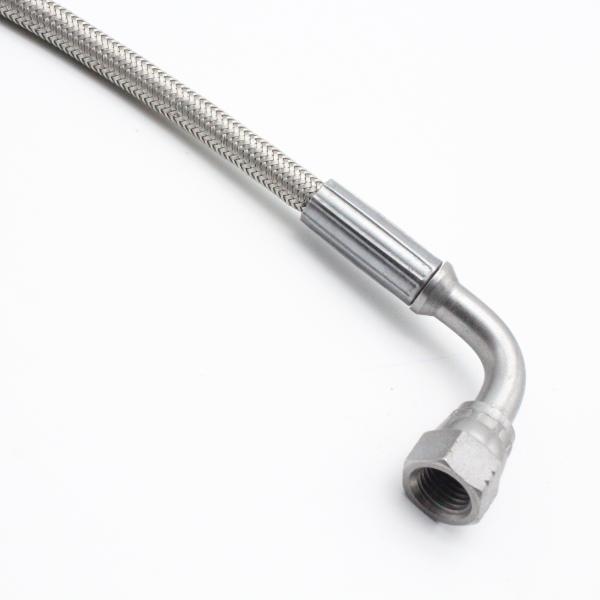

PTFE Hose Assembly
We can crimp the hose assembly in our factory.
Ferrule: 00TF0
Fitting: According to customers' request. Most of them use JIC
Female thread.
Material 1: carbon steel with zinc plated
Material 2: carbon steel with nickel alloy plated
Material 3: SS304 / SS316
