    3/4'' PTFE Convoluted Hose With SS304 Over Braided

    Ask Lasest Price
    Brand Name : OEM
    Model Number : PCH-19
    Certification : ISO 9001-2008, CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 120,000 meters per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

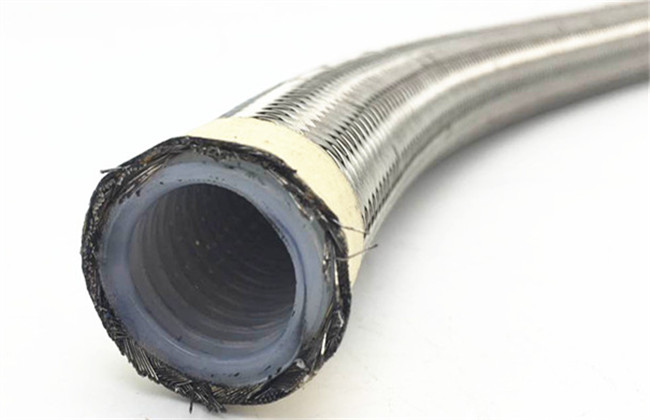

    3/4'' PTFE Convoluted Hose With SS304 Over Braided

    High Temperature 3/4'' PTFE Convoluted Hose with SS304 Over Braided


    CLWB PTFE convoluted hose can be used in different applications. They are designed for flow of chemically and food products, for the industrial process like pure water or dangerous wastes and in various applications in the automotive and industrial fields. This PTFE convoluted hose are also designed to be used with a range of hydraulics fittings. Ferrules are available according to the crimping table.


    CONSTRUCTIONS
    Produced with PTFE resins and braided in AISI 304. This kind of resins are approved by FDA, DVGW and BFR and allow to our hoses to be used with foods and drinks. We have also tested our hoses according to EC 2002/72 and DM 174/2004 that have confirmed the possibility to use our hoses in contact with water, food and beverage.


    CHARACTERISTICS


    • Flexibility
    • Long convoluted wave which allow a perfect cleaning
    • Resistant to corrosion
    • Inertial to chimical products

    TEMPERATURES
    Temperature -70 +260°C depending on the working pressure.


    Product CodeInner DiameterOuter DiameterMax. Working PressureMin. Bend RadiusBurst Pressure
    inchmmmmbarmmbar
    PS-053/16510.614615438
    PS-061/46.511.512520375
    PS-085/168.012.39830294
    PS-103/89.715.68530255
    PS-121/212.719.06640198
    PS-165/816.022.55750171
    PS-193/419.0526.43980117
    PS-227/822.429.23595105
    PS-25125.433.025100100
    PS-321-1/432.040.52012080
    PS-381-1/238.047.02014080
    PS-51250.861.002017580
    PS-652-1/26586.51021040
    PS-76376.294.71031040

    Packing & Shipment


    Normal Packing: opp film and woven strips wrapped

    Customized Packing: Non-fumigation pallrt or Wooden reel


    Hose I.D

    Length/roll

    1/2''~1''

    50~70m

    1-1/4'' ~ 2''

    40~50m


    Competitive Advantage


    1, 15 years manufacturing experience


    2, Passion PTFE hose is made of virginal PTFE, with Excellent high temperature & corrosion resistance.

    3, Hot sale in America, Canada, Germany, Mexico.


    4, Free Sample / Hose assembly can be customized as per request


    5, Small order is workable

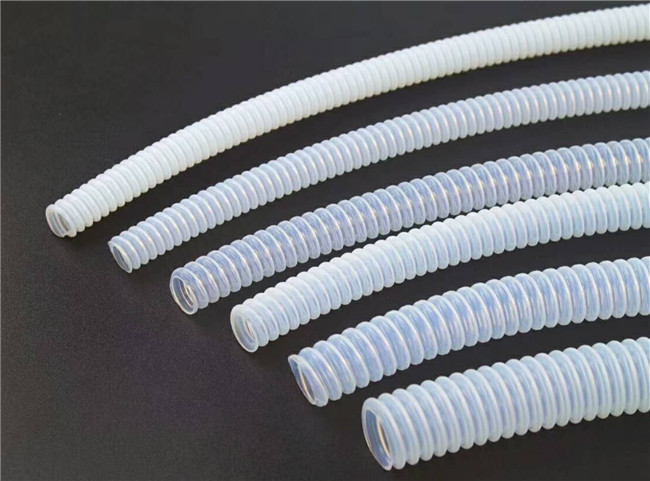

    Inner tube


    Convoluted PTFE (virgin and transparent)

    Excellent high temperature (260°C)/ corrosion resistance / flexibility
