    JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc

    Ask Lasest Price
    Brand Name : PAISHUN
    Model Number : 16711
    Certification : ISO9001-2015
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram, L/C, Paypal
    Supply Ability : 50000PCS/Month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

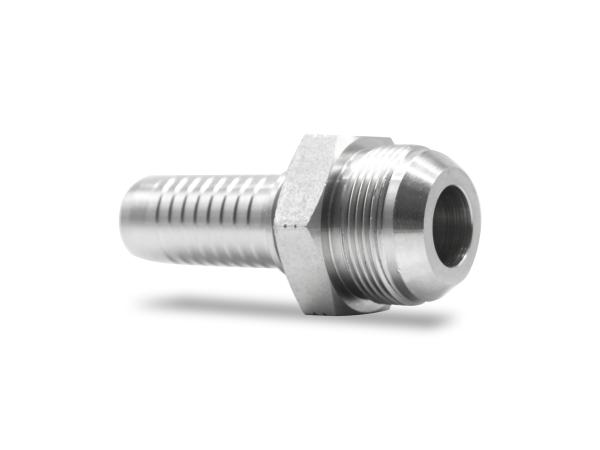

    JIC Male 37 Degree Cone Hydraulic Hose Connectors Galvanized Zinc

    JIC Male 37 Degree Cone Hydraulic Hose Connectors in Carbon Steel

    JIC Male 37 Degree Cone Hydraulic Hose Connectors


    All of our hydraulic fittings are produced by advanced CNC machines.

    Standard: Yonghua
    Technology: Hot forging
    Material: carbon steel 45# or stainless steel 304/316
    Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
    It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.


    Application:
    Widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.


    Specification:


    JIC MALE 74 DEGREE CONE ISO 8434-2--SAE J514


    Part No.Thread EHose BoreDimensions
    DNDASHACS1
    16711-04-037/16"x20503261412
    16711-04-047/16"x2060426.51412
    16711-05-041/2"x2060426.51414
    16711-05-051/2"x2080526.51414
    16711-05-061/2"x20100626.51417
    16711-06-049/16"x1860426.514.117
    16711-06-059/16"x1880526.514.117
    16711-06-069/16"x18100626.514.117
    16711-08-063/4"x16100631.516.722
    16711-08-083/4"x1612083216.722
    16711-10-067/8"x14100633.519.324
    16711-10-087/8"x1412083419.324
    16711-10-107/8"x1416103519.324
    16711-12-081.1/16"x12120838.521.930
    16711-12-101.1/16"x12161039.521.930
    16711-12-121.1/16"x1220124021.930
    16711-12-161.1/16"x1225164221.930
    16711-14-101.3/16"x12161041.522.632
    16711-14-121.3/16"x12201240.522.632
    16711-16-121.5/16"x1220124323.136
    16711-16-161.5/16"x12251643.523.136
    16711-20-161.5/8"x1225164724.346
    16711-20-201.5/8"x12322047.524.346
    16711-24-201.7/8"x1232205327.550
    16711-24-241.7/8"x1240245327.550
    16711-32-322.1/2"x1250326233.965

    Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 16712-**-**.

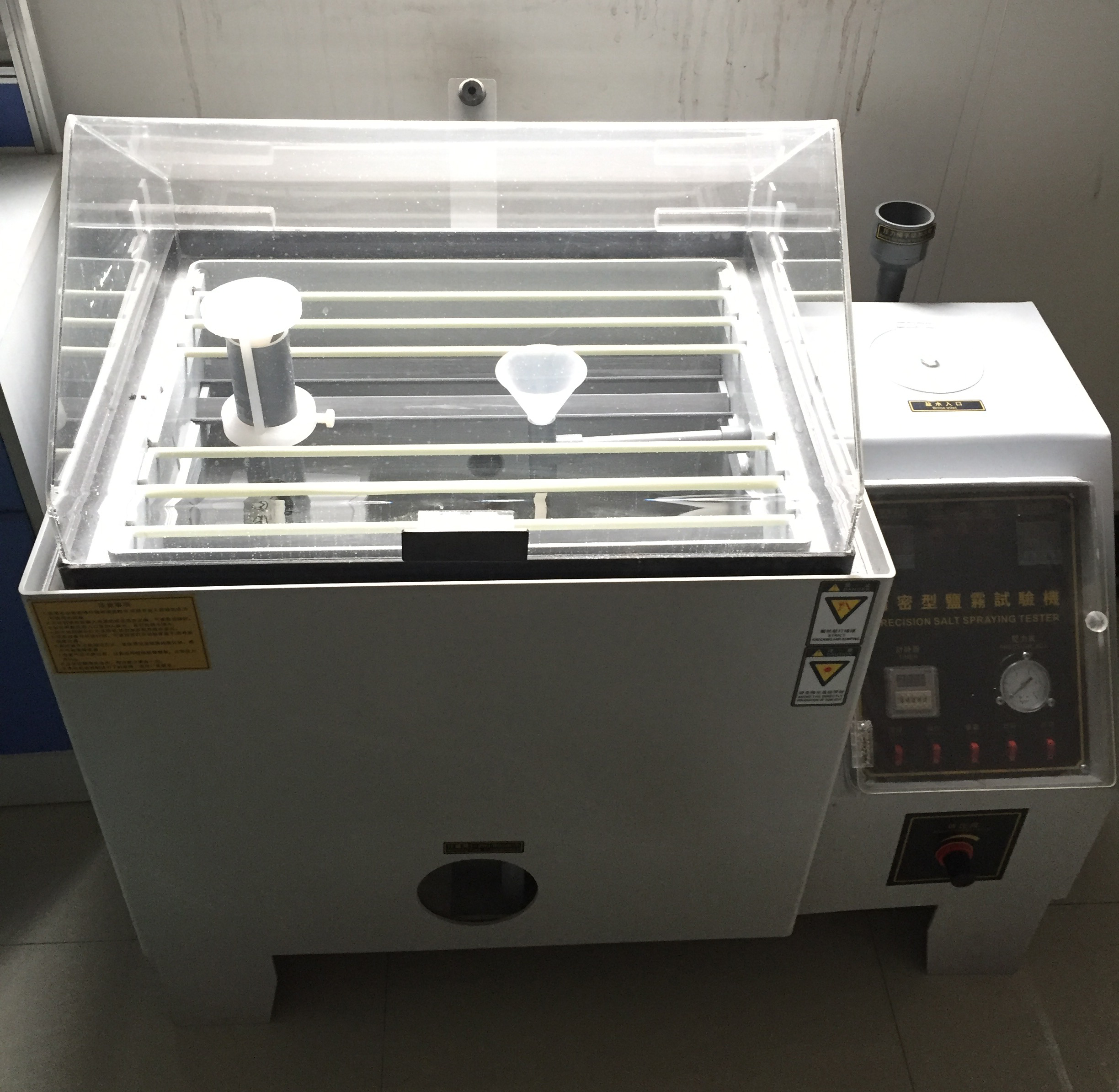

    Salt Spray Test


    All our Fittings have the surface treated by galvanic zinc coating with a thick chromate passivation ( Chromium III) and sealing
    (Fe/Zn12/AT2 according to EN ISO 2081). 96 hours to 164 hours salt spray test.



    Packing Size and Style


    Usually 42 corragetd cartons are packed in a wooden case.
    Surely we can be customized the measure according to your request.
