60" R134a, R410a W.P 800psi Refrigerant Hoses With Ball Valves
R134a, R410a W.P 800psi Refrigerant Hoses with Ball Valves
Refrigerant Charging Hose (smooth surface)
Construction: Inner tube: High nitrile-butadience rubber (NBR)
Reinforcement: Polyester fiber spiral line.
Cover: NBR&PVC blends.
Temperature: -30℃ - +100℃
Color: Red, Yellow, Blue, Black.
Specification sheet:
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
mm | mm | psi | psi | m | cbm/roll | kg/m |
5 | 11 | 500 | 2500 | 100 | 0.02 | 0.13 |
5 | 11 | 600 | 3000 | 100 | 0.02 | 0.13 |
5 | 12 | 800 | 4000 | 100 | 0.02 | 0.16 |
Here are three working pressure for refrigerant charging hoses:
500psi, 600psi and 800psi,
And burst working pressure for refrigerant charging hoses: 2500psi, 3000psi, 4000psi.
The hose price will depend on the pressure since the hose ID is the
same.
Fitting type:1/4" SAE straight and 45° brass fittings, ball valves, and quick
couplers.
If you need other sizes and fittings, please feel free to contact
us.
Product photos:
Product Application:
Packing & Delivery:
Packing & Delivery: Plastic bags and carton boxes.
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
Company Profie:
Paishun is a leading rubber hose manufacturer in east China for
over 14 years, with professional and permanent technical service
and support for you.
We own complete production lines of rubber mixing process, cold
feeding material extrusion process, micro wave vulcanization
process, and high speed braiding process, etc.
Paishun has various types of certificates, such as ISO9001, CE,
RoHS, etc.
FAQ:
1. Q:Are you a factory or trading company?
A: We are a factory for over 13 years.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Hangzhou City, Zhejiang Province,
China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit
us!
3. Q:How can I get some samples?
A: We are honored to offer you samples.
4. Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION always attach great importance to
quality controlling from the beginning to end. Our factory has
gained CE, ISO, SGS etc.
The Red and Blue quick coupler: ( Low and High Pressure )
after fitting it into the car, for opening the gas flow, you need
to rotate the valve in one direction. Then only, the gas will start
flowing into the machine. Similarly, for removing the coupler, you
need to first close the valve by rotating it to the opposite
direction. Then only, we will be able to take out the coupler from
car.Other wise, it will not be taken out even if you try to pull it
out.
Usage for refrigerant charging hose:
Conveying refrigerant such as R12, R22, R502 and R134a; applied
widely to auto refrigeration, air-conditioning, industrial
refrigerators etc; both the inner rubber layer and protective layer
are of high level oil resistance of grade RMA-A antiseepage.
About Us:
PASSION for Production: It's the essential of our enterprise. We invest continuous
resources on our production equipments, as well as the testing
machines. Our experienced engineers will assure the quality
control.
PASSION for Sales: We have experience selling to foreign markets. We offer our
favorable factory prices directly to help you win your markets. We
also have a professional after-sales team to help you solve any
problem you may have.
PASSION for Service: PASSION people are one team of passion and service esprit. You
will find it's very easy to communicate with us. 24 hours x 7 days
waiting for your contact!
Certificate: ISO9001-2015 certified manufacturer

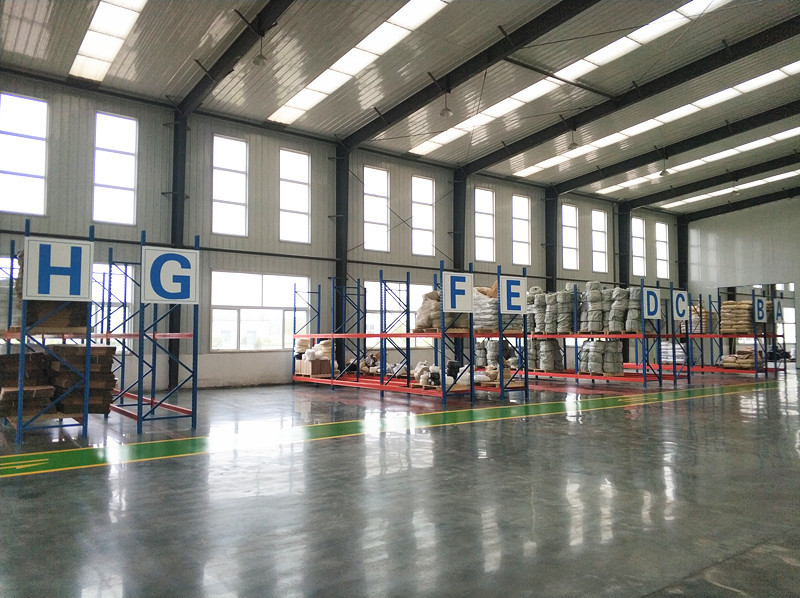

Factory Photos:
Passion for hose, Passion for you.
